PRODUCT DESCRIPTION

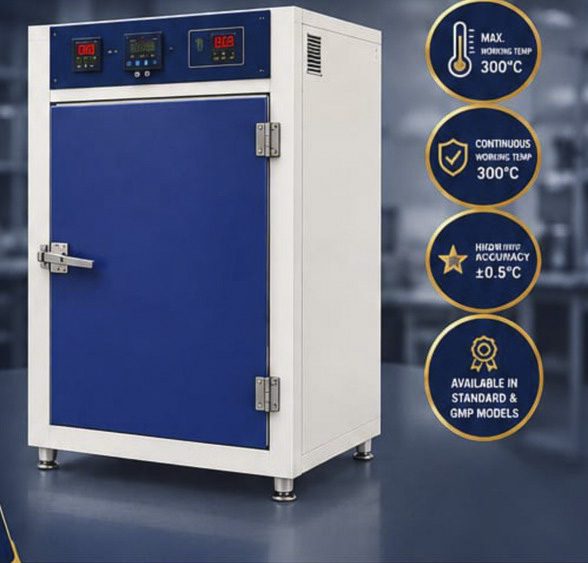

Precision Lab Oven for Reliable Laboratory Applications
Product Description
Engineered for precision heating, drying, sterilization and advanced laboratory applications.
Designed for pharmaceutical industry, educational institutes, research laboratories, industrial laboratories, quality control and testing applications.
View / Download 2026 Brochure →Performance Highlights
- Precise temperature control
- Reliable & safe operation
- Durable & efficient performance
- Energy efficient design
- Maximum working temperature up to 300°C
KEY FEATURES
Features & Benefits
- Memmert type electrically heated oven for wide range of laboratory applications.
- Triple body construction for superior insulation and safety.
- Advanced microprocessor based PID controller for high accuracy.
- Uniform air circulation with top mounted blower for consistent temperature.
- Stainless steel interior (S.S. 304) for durability and easy cleaning.
- Digital timer up to 99.99 Hrs with buzzer alarm.
- Safety thermostat and multiple safety interlocks for protection.
- Attractive finish & aesthetic design.
- Available in Standard & GMP models.
TECHNICAL SPECIFICATIONS
Technical Specifications
| Specification | Details |
|---|---|
| Type of Oven | Electrically heated Memmert type |
| Construction | Triple body construction |
| Material of Construction (Standard) | Inner: S.S. 304 (or MS/G.I.) | Intermediate: S.S. 304 & G.I. | Outer: G.I. powder coated |
| Material of Construction (GMP) | Inner: S.S. 304 mirror finish | Intermediate: S.S. 304 | Outer: S.S. 304 matt finish |
| Max. Working Temperature | 300°C |
| Continuous Working Temperature | 300°C |
| Temperature Controller | Microprocessor based PID controller with dual display & Siemens / INT contactor |
| Temperature Accuracy | ±0.5°C |
| Temperature Sensor | Calibrated RTD type thermocouple (up to 400°C) with accuracy ±0.1°C |
| Heater | Stainless steel tubular heater with clamp |
| Insulation | Glass wool dense grade |
| Blower | Flange type motor (1/20 HP) with blower, top mounting, centre suction side discharge |
| Timer | In-built timer up to 99.99 Hrs. (bypassable) |
| Power Supply | 230 V AC, 50 Hz, 1 Phase |
MODEL & SIZE
Model & Size
| Model No. | Capacity (Cu. Ft) | Capacity (Litres) | Chamber (W × D × H) | Overall Unit (W × D × H) | Shelves | WT. (kg) | Packed in Wooden Case (kg) | VAC Hz | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|
| PIS101S-1 / PIS101G-1 | 1 | 27 | 30 × 30 × 30 | 53 × 47 × 62 | 1 | 35 | 47 | 230 V, 50 Hz | 1200 |
| PIS101S-1.5 / PIS101G-1.5 | 1.5 | 45 | 40 × 40 × 40 | 63 × 67 × 72 | 2 | 40 | 55 | 230 V, 50 Hz | 1500 |
| PIS101S-3 / PIS101G-3 | 3 | 90 | 45 × 45 × 45 | 68 × 72 × 77 | 2 | 56 | 70 | 230 V, 50 Hz | 2000 |
| PIS101S-4 / PIS101G-4 | 4 | 120 | 45 × 45 × 60 | 68 × 72 × 87 | 2 | 65 | 75 | 230 V, 50 Hz | 2500 |
| PIS101S-8 / PIS101G-8 | 8 | 200 | 60 × 60 × 60 | 83 × 87 × 87 | 2 | 75 | 100 | 230 V, 50 Hz | 2800 |
| PIS101S-12 / PIS101G-12 | 12 | 324 | 60 × 60 × 90 | 83 × 87 × 117 | 3 | 100 | 125 | 230 V, 50 Hz | 3000 |
| PIS101S-16 / PIS101G-16 | 16 | 450 | 60 × 60 × 125 | 80 × 130 × 162 | 4 | 140 | 175 | 230 V, 50 Hz | 4000 |
| PIS101S-21 / PIS101G-21 | 21 | 600 | 60 × 80 × 125 | 80 × 130 × 182 | 5 | 165 | 205 | 230 V, 50 Hz | 4500 |
| PIS101S-28 / PIS101G-28 | 28 | 800 | 80 × 80 × 125 | 100 × 130 × 197 | 5 | 205 | 250 | 230 V, 50 Hz | 5000 |
| PIS101S-34 / PIS101G-34 | 34 | 1000 | 80 × 80 × 155 | 100 × 130 × 207 | 5 | 250 | 300 | 230 V, 50 Hz | 6000 |
Safety Interlocks & Features
- Overload safety cut-off
- Over temperature protection
- Safety input protection
- 1-Phase indication lamp
- Emergency switch off
- Safety thermostat to protect against over shoot temperature
Spares Required for 5 Year Trouble Free Operation
- Heating Coil — 1 Set
- Solid State Relay — 1 No.
- Thermocouple — 1 No.
- Switchgear (Main Switch with MCB) — 3 No. each
- Blower Motor — 1 No.
- Data Logger — Extra if Required
APPLICATIONS
Ideal for a Wide Range of Laboratory Applications
Applications
Pharmaceutical IndustryEducational InstitutesResearch LaboratoriesIndustrial LaboratoriesQuality Control & Testing
QUICK ENQUIRY
Need the right Hot Air Oven for your laboratory?
Tell us your required capacity, application and required specifications. Phoenix India Solutions can help you select the appropriate model and provide a technical and commercial offer.
