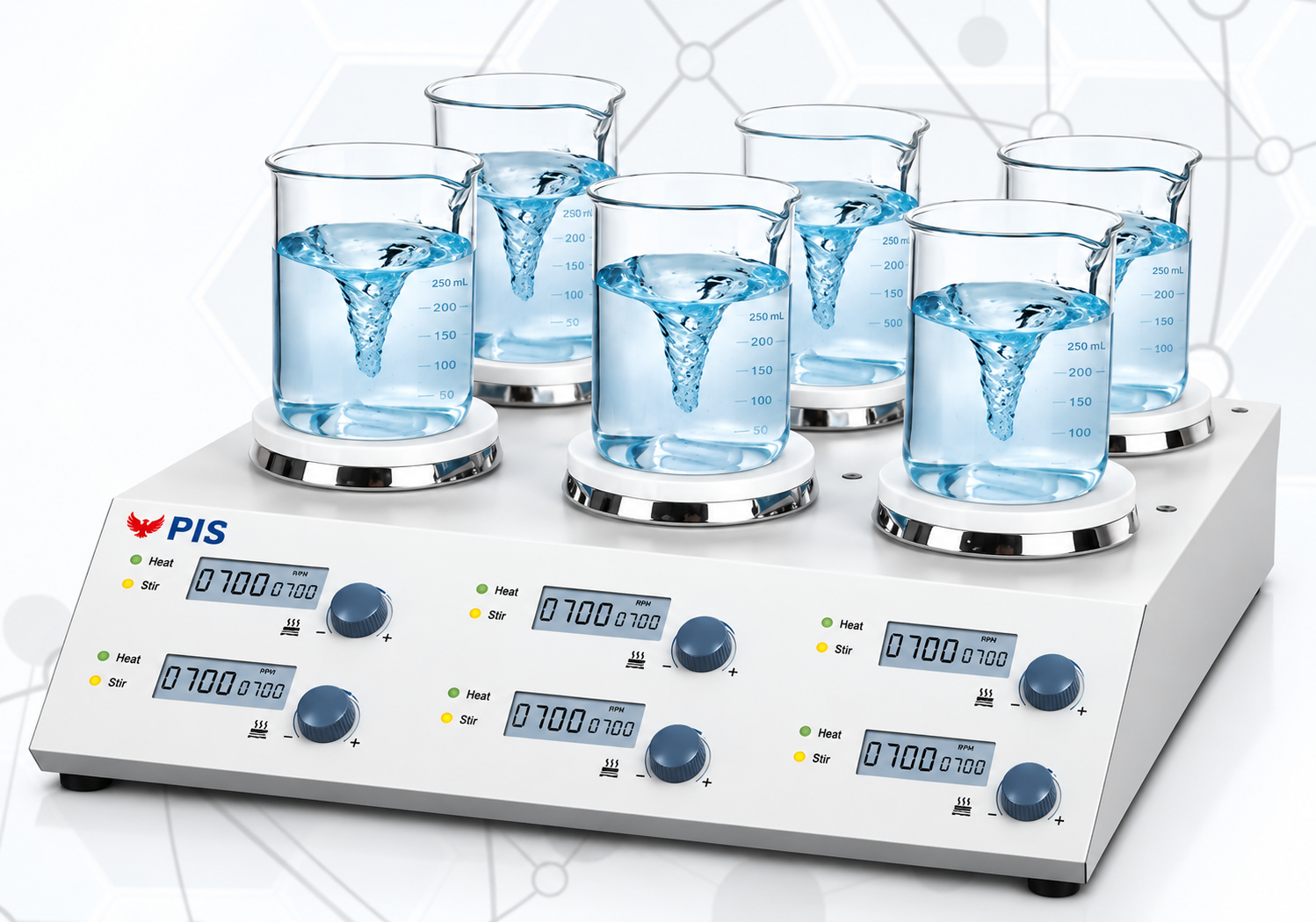

PIS M 6 Position Magnetic Stirrer
The PIS M 6 Position Magnetic Stirrer is a multi-position laboratory magnetic stirring solution designed for simultaneous processing of multiple samples. Its six independent stirring positions allow laboratories to perform multiple stirring operations in one compact instrument.
The instrument features a ceramic-coated aluminium work plate designed for fast heat transmission and strong corrosion resistance. Six stirring positions provide a stirring speed range of 200 to 1500 rpm, with a maximum stirring quantity of 3 litres per channel.
Each stirring position uses a spark-free DC brushless motor designed for long service life and low maintenance. LCD display functionality provides convenient monitoring of stirring speed for the individual channels.
The PIS M is compatible with various heating blocks or reaction vessels for different laboratory application scenarios. Its ultra space-saving six-position configuration integrates multiple stirring positions into one instrument.
Safety features include a HOT warning that flashes on the LCD display when the work plate temperature is above 50°C after the power switch is turned off. The product information also specifies safety compliance with laboratory heating-device safety regulations.
The 6 Position Magnetic Stirrer is suitable for research laboratories, pharmaceutical industries, chemical industries and educational institutions where multiple samples need to be stirred simultaneously.
Key Features & Benefits
- Six Independent Stirring Positions: Six stirring positions allow multiple samples to be processed simultaneously in one instrument.
- Multi-Sample Processing: The six-position configuration is designed for laboratories requiring simultaneous stirring of multiple samples.
- Wide Stirring Speed Range: Stirring speed can be adjusted from 200 to 1500 rpm.
- 3 L Capacity per Channel: The maximum stirring quantity specified is 3 L per channel for water.
- Ceramic-Coated Aluminium Work Plate: The work plate uses aluminium with ceramic coating for fast heat transmission and strong corrosion resistance.
- Spark-Free DC Brushless Motor: The stirring system uses DC brushless motors designed for long life and low maintenance.
- LCD Display: LCD display functionality provides convenient monitoring of stirring speed for the individual channels.
- Compatibility with Heating Blocks & Reaction Vessels: The instrument is compatible with various heating blocks or reaction vessels for different laboratory application scenarios.
- Ultra Space-Saving Design: Six stirring channels are integrated into a single compact instrument to support efficient laboratory workspace utilization.
- HOT Warning: The HOT warning flashes on the LCD display when the work plate temperature is above 50°C after the power switch has been turned off.
- Reliable Safety Mechanism: The product information specifies a safety mechanism designed to support safe operation of the laboratory heating device.
- Multiple Laboratory Applications: Suitable for research laboratories, pharmaceutical industries, chemical industries and educational institutions.
With six independent stirring positions, a 200–1500 rpm speed range and a compact multi-position design, the PIS M provides a practical solution for laboratories requiring simultaneous stirring of multiple samples.
Technical Specifications
The following specifications are taken from the technical specification table provided for the PIS M 6 Position Magnetic Stirrer.
| Parameter | PIS M |
|---|---|
| Work Plate Dimension | 134 mm |
| Work Plate Material | Aluminium with Ceramic Coating |
| Motor Type | Brushless DC Motor |
| Motor Rating Output | 5 W × 6 |
| Heating Power | 600 W × 6 |
| Total Power | 605 W × 6 |
| Voltage, Frequency | 100–240 V, 50/60 Hz |
| Stirring Positions | 6 |
| Maximum Stirring Quantity (H₂O) | 3 L × 6 |
| Maximum Stirring Quantity per Channel | 3 L |
| Maximum Magnetic Bar Length | 40 mm |
| Speed Range | 200–1500 rpm |
| Speed Control Accuracy | ±20 rpm |
| Speed & Temperature Display | LCD |
| Heating Temperature Range | 25–280°C |
| Overheating Protection | 420°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Control Accuracy | ±1°C (<100°C) |
| External Temperature Sensor | PT1000 (Accuracy ±0.2°C) |
| IP Protection Class | IP21 |
| Dimensions (W × D × H) | 546 × 523 × 127 mm |
| Weight | 12.7 kg |
Operational & Safety Features
The PIS M 6 Position Magnetic Stirrer is designed for simultaneous multi-sample stirring with six stirring positions. Its compact configuration combines reliable stirring performance, LCD monitoring and safety features for laboratory operation.
- Six Stirring Positions: Multiple samples can be stirred simultaneously in one instrument.
- Stirring Speed: 200–1500 rpm.
- Maximum Capacity: 3 L per channel for water.
- Maximum Magnetic Bar Length: 40 mm.
- Brushless DC Motor: Spark-free motor technology designed for long life and low maintenance.
- LCD Monitoring: LCD display provides convenient monitoring of stirring speed.
- Speed Control Accuracy: ±20 rpm.
- HOT Warning: The HOT warning flashes when the work plate temperature is above 50°C after the power switch has been turned off.
- Safety Mechanism: The product information specifies a safety mechanism for the laboratory heating device.
- IP21 Protection: The instrument is specified with IP21 protection.
The supplied brochure also states compliance with IEC61010-1, UL61010-1, BSEN61010-1 and CAN/CSA-C22.2 NO.61010-1, along with other listed safety regulations for laboratory heating devices.
Applications & Laboratory Uses
The PIS M 6 Position Magnetic Stirrer is designed for laboratory environments where multiple samples need to be stirred simultaneously.
- Research Laboratories: Suitable for research applications requiring simultaneous stirring of multiple samples.
- Pharmaceutical Industries: Suitable for applicable pharmaceutical laboratory processes requiring magnetic stirring.
- Chemical Industries: Suitable for applicable chemical laboratory processes involving magnetic stirring and multi-sample processing.
- Educational Institutions: Suitable for laboratory teaching and practical experiments involving multiple samples.
- Multi-Sample Stirring: Six stirring positions allow multiple samples to be processed simultaneously.
- Parallel Laboratory Work: The multi-position configuration supports workflows involving several samples or experiments.
- Multiple Reaction Vessels: Compatibility with various reaction vessels supports different laboratory applications.
The brochure identifies the product for Research Laboratories, Pharmaceutical Industries, Chemical Industries and Educational Institutions.
Why Choose Phoenix India Solutions?
- Six-Position Magnetic Stirring Solution: The PIS M provides six stirring positions in a single instrument for simultaneous multi-sample laboratory work.
- Multi-Sample Capability: The six-position configuration is designed for laboratories requiring multiple samples to be stirred simultaneously.
- Wide Stirring Speed Range: The specified stirring speed range is 200–1500 rpm.
- 3 L Capacity per Position: The specified maximum stirring quantity is 3 L per channel for water.
- Brushless DC Motor: The stirring system uses brushless DC motor technology.
- Compact Configuration: Six stirring positions are integrated into one instrument, supporting efficient laboratory workspace utilization.
- Easy Monitoring: LCD display functionality provides convenient monitoring of stirring speed.
- Safety Features: The instrument includes a HOT warning and stated safety features.
- Multiple Laboratory Applications: Suitable for research laboratories, pharmaceutical industries, chemical industries and educational institutions.
- Application-Based Support: Phoenix India Solutions can assist in selecting a suitable magnetic stirring solution according to laboratory requirements.
For laboratories requiring simultaneous stirring of multiple samples, the PIS M 6 Position Magnetic Stirrer provides a compact multi-position solution with a 200–1500 rpm stirring range and up to 3 L stirring capacity per channel.
Interested in PIS M 6 Position Magnetic Stirrer?
Looking for a reliable 6 Position Magnetic Stirrer for simultaneous stirring of multiple samples in your research, pharmaceutical, chemical or educational laboratory?
The PIS M provides six stirring positions, a 200–1500 rpm stirring speed range, up to 3 L capacity per channel, LCD display, brushless DC motor technology and a ceramic-coated aluminium work plate.
Contact Phoenix India Solutions for product details, technical specifications, application guidance and assistance in selecting the appropriate Multi-Position Magnetic Stirrer for your laboratory requirements.
