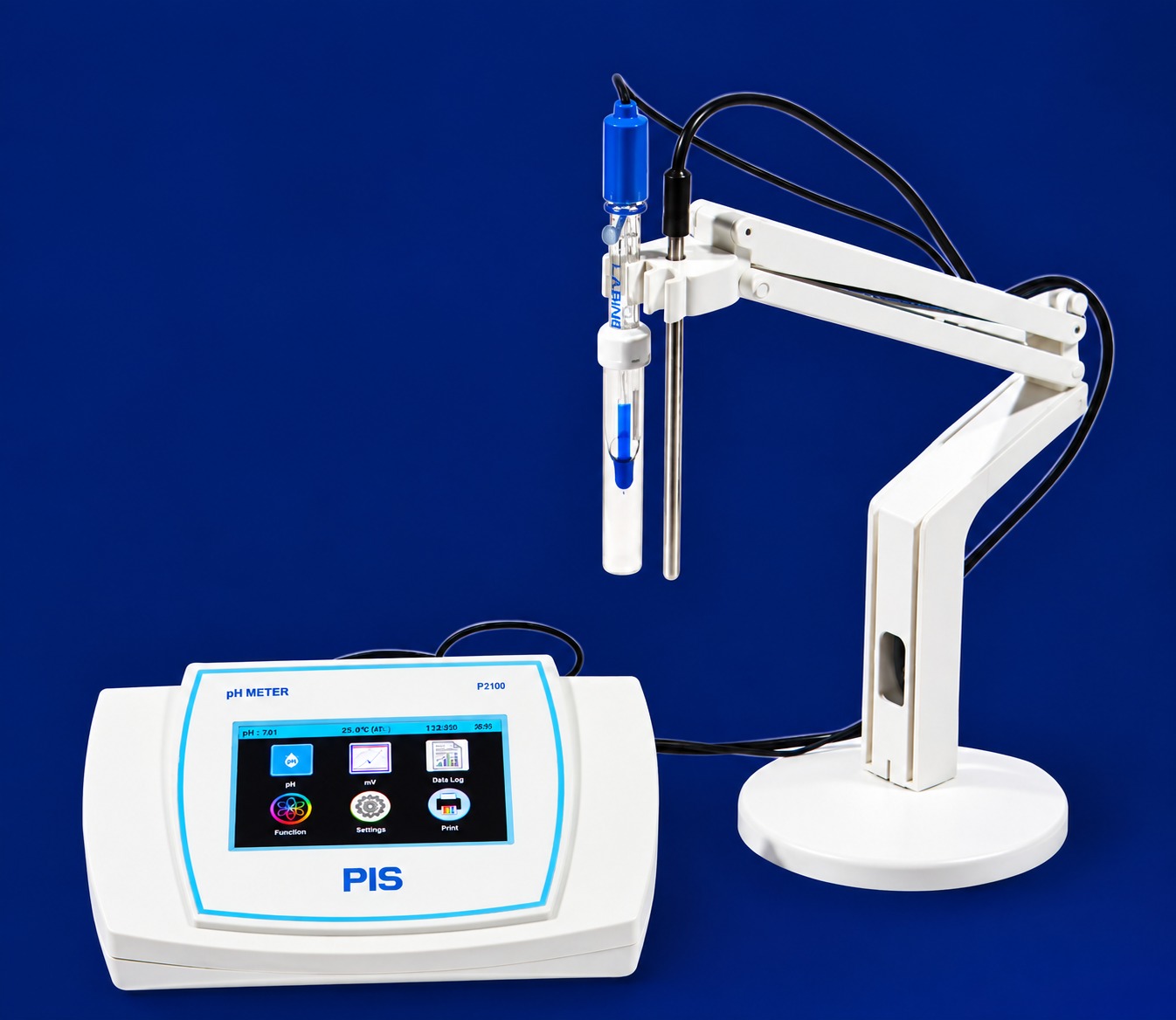

pH Meter
Advanced pH Measurement for Laboratory Applications
Designed for accuracy and ease of use, the pH meter delivers reliable results with an intuitive touchscreen interface and advanced data management features. With secure calibration tracking and compliance with industry standards, it is the ideal choice for laboratories seeking precision and efficiency.
Key Features & Benefits
- Sleek moulded cabinet with 5″ colour high resolution display and user friendly interface.
- Advanced microcontroller-based, state-of-the-art design.
- Complies with USP and DIN standards.
- Simultaneous measurement of pH, mV and temperature.
- Simultaneous measurement of pH, mV and temperature.
- Calibration data with date and time stamp for authentication.
- Calibration reminder.
- Alphanumeric entries of sample name, identification number for authentication.
- Inbuilt stability indicator for reproducible results.
- 3 different reading lock criteria – Auto, Manual and User defined.
- Factory entered customer name and serial number on report printout.
- Combined pH and conductivity instrument is optional.
- PC based data capturing facility using EDC 21 software.
- Customizable report file.
- Preview reading result data before printing.
- Data backup & restore facility available.
- Error indication on display helps troubleshooting.
- Daily auto incremented reading number.
- Practically unlimited storage of test readings with date and time stamp
- Automatic temperature compensation by digital temperature sensor (range 0° to 125°C).
- 3-point (isopotential) or 5-point (linear or segmented) calibration protocol with user selectable calibration standard.
Technical Specifications
| Parameter | Specification |
|---|---|
| Control | 32 Bit Micro Controller based |
| Display | 5" capacitive touch screen |
| pH range | -2.00 to 19.999 |
| Resolution | 0.1 / 0.01 / 0.001 pH |
| Relative Accuracy | ± 0.002 pH |
| Slope | User selectable between 80% 120% |
| Sensor | Combination pH electrode |
| Calibration | Auto calibration and printout of calibration Report. |
| mV range | ± 1999.9 mV |
| Resolution | ± 0.1 mV |
| Relative accuracy | ± 0.2 mV |
| Temperature range | 0 to 125°C |
| Resolution | 0.1°C |
| Relative accuracy | ± 0.1°C |
| Sensor | Digital Temperature Sensor |
| Temp. Compensation | Auto/Manual |
| Input | 1 BNC, 1 Banana, 1 Digital Temperature Sensor |
| Input Impedance | > 10¹² ohms |
| Printer connectivity | Centronics parallel port for Dot matrix / Desk jet |
| Serial Interface | RS-232C for PC connectivity for data download |
| Electrode diagnosis | Yes |
| Report Storage | Practically Unlimited |
| Report format | (a) Report of selected pH & mV reading with temperature. (b) Calibration report (c) Data table & graph in data log mode |
| Power requirement | 9VDC 1A ±0.1V |
| Environmental Operating Conditions | Operation: Indoor; Temperature: Ambient to 45°C; Relative humidity: 20 to 0% non condensing; Altitude: Upto 2000m |
| Dimensions (Approx.) | 244 × 160 × 105 mm (W × D × H) |
| Weight (Approx.) | 1 kg |
Applications & Industries
- Pharmaceutical Industry
- Chemical Industry
- Food & Beverage Industry
- Petrochemical Industry
- Research & Development
- Environmental Testing
