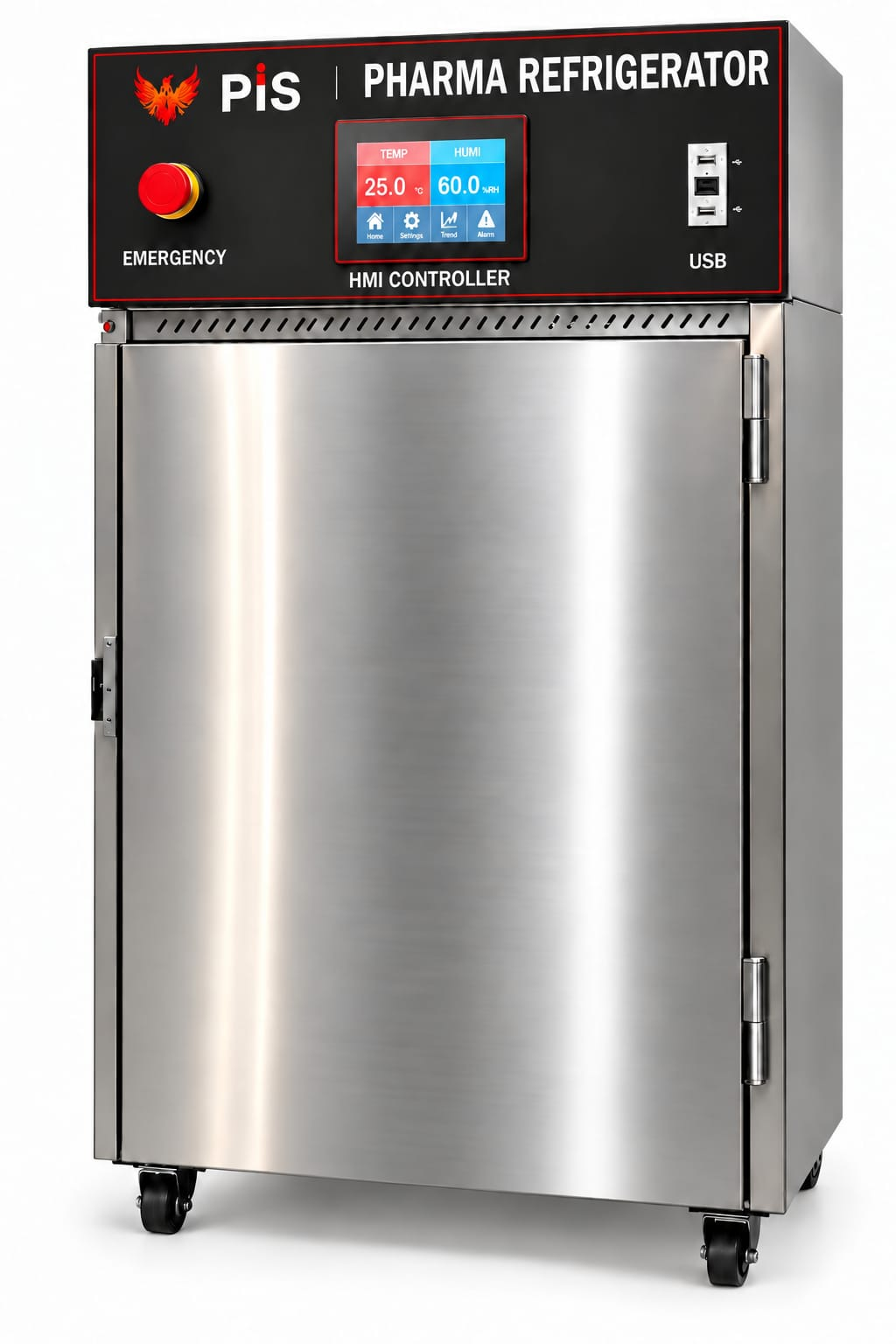

Pharma Refrigerator – Reliable 2°C to 8°C Storage
Pharma Refrigerator for Precise 2°C to 8°C Storage
Phoenix India Solutions offers Pharma Refrigerators designed for reliable and controlled storage of temperature-sensitive pharmaceutical, biological and laboratory materials. Operating within the 2°C to 8°C standard pharma temperature range, the Pharma Refrigerator is designed for applications where precise temperature control and dependable storage conditions are important.
The Pharma Refrigerator is equipped with a microprocessor-based PID controller with auto-tune facility, RTD Pt-100 temperature sensor, digital LED display and forced air circulation to support controlled temperature conditions throughout the storage chamber. The refrigerator uses a CFC-free compressor with R134a refrigerant and incorporates double-walled construction with PUF insulation.
Available in Standard and GMP models with capacities ranging from 90 Litres to 1000 Litres, the Pharma Refrigerator range is suitable for pharmaceutical storage, stability studies, research and development, vaccine and biological storage and general laboratory applications.
For laboratories requiring advanced monitoring and data management, the Pharma Refrigerator can be configured with 21 CFR Part 11 compliant software, audit trail, multilevel passwords, online and offline data storage, multi-chamber data acquisition, tabular and graphical reports, alarm reports and time synchronization.
Key Features & Benefits
The Pharma Refrigerator is designed for reliable storage of temperature-sensitive pharmaceutical, biological and laboratory materials within the standard pharma temperature range of 2°C to 8°C. Its temperature control, refrigeration, air circulation, construction and safety features are designed to support stable and dependable storage conditions.
- Precise Temperature Control: Microprocessor-based PID controller with auto-tune facility for controlled temperature management.
- Standard Pharma Temperature Range: Designed for operation within the 2°C to 8°C temperature range.
- RTD Pt-100 Temperature Sensor: Provides temperature sensing for controlled monitoring and regulation.
- Digital LED Display: 3½-digit digital LED display for temperature indication.
- Efficient Heating System: U-shaped Nichrome wire heater fitted in SS sheathing.
- CFC-Free Refrigeration: CFC-free compressor using R134a refrigerant.
- Forced Air Circulation: Air circulation system with flange motor and blower to support temperature distribution inside the chamber.
- Heavy-Duty SS Wire Mesh Trays: Adjustable-height stainless-steel trays provide flexible storage arrangement.
- Double-Walled Construction: Double-walled construction with PUF insulation for controlled storage conditions.
- Full-Length Glass Viewing Door: Provides visibility of stored materials and incorporates a locking arrangement.
- Easy Mobility: Castor wheels are provided for convenient movement of the refrigerator.
- GMP Model: GMP configuration features a mirror-polished stainless-steel chamber and full stainless-steel exterior.
- Standard Model: Standard configuration features a stainless-steel chamber with powder-coated exterior.
- Temperature Safety: Over-temperature cut-off and safety provisions help protect stored materials and the refrigeration system.
- Electrical Protection: Electrical overload compressor cut-off and electrical short-circuit breaker are provided as safety features.
- Compressor Protection: Time-delay provision for compressor switch-on supports safe refrigeration system operation.
- Advanced Data Management: Optional data-recording and software features are available for applications requiring electronic monitoring, reporting and traceability.
Technical Specifications
The PIS Pharma Refrigerator is designed for controlled pharmaceutical and laboratory storage within the standard 2°C to 8°C temperature range. The system combines PID-based temperature control, RTD Pt-100 sensing, forced-air circulation, CFC-free refrigeration and insulated construction for reliable temperature-controlled storage.
| Parameter | Specification |
|---|---|
| Temperature Range | 2°C to 8°C – Standard Pharma Range |
| Temperature Controller | Microprocessor-Based PID Controller with Auto Tune Facility |
| Temperature Sensor | RTD Pt-100 Temperature Sensor |
| Temperature Display | Digital LED Display – 3½ Digit |
| Heating System | U-Shaped Nichrome Wire Heater in SS Sheathing |
| Refrigeration System | CFC-Free Compressor with R134a Eco-Friendly Refrigerant |
| Air Circulation | Air Circulation with Flange Motor and Blower |
| Trays | Heavy-Duty SS Wire Mesh Trays with Adjustable Height |
| Construction | Double-Walled Construction with PUF Insulation |
| Door | Full-Length Glass Viewing Door with Locking Arrangement |
| Mobility | Castor Wheels for Easy Mobility |
| GMP Model Interior | SS Mirror-Polished Chamber |
| GMP Model Exterior | Full SS Exterior |
| Standard Model | SS Chamber with Powder-Coated Exterior |
| Ambient Temperature Requirement | Preferably 25°C |
| Input Voltage | Stabilised 230 VAC, 50 Hz, 20 Amps |
| Water Drain | Water Drain Line with Nozzle at Floor Level |
Models & Capacity
The PIS Pharma Refrigerator is available in both Standard and GMP configurations to meet different pharmaceutical, biological and laboratory storage requirements. The model range covers capacities from 90 Litres to 1000 Litres, with different chamber dimensions, shelf arrangements and power ratings.
| Standard Model | GMP Model | Capacity Cu. Ft. |
Capacity Litres |
Chamber Dimensions (cm) |
Overall Dimensions (cm) |
Shelves | Unit Weight (kg) |
Packed Weight (kg) |
VAC Hz | Watts |
|---|---|---|---|---|---|---|---|---|---|---|
| PISO45S-3 | PISO45G-3 | 3 | 90 | 45 × 45 × 45 | 60 × 95 × 110 | 2 | 110 | 165 | 230, 50 | 1500 |
| PISO45S-4 | PISO45G-4 | 4 | 120 | 45 × 45 × 60 | 60 × 95 × 125 | 2 | 150 | 225 | 230, 50 | 2000 |
| PISO45S-8 | PISO45G-8 | 8 | 200 | 60 × 60 × 60 | 80 × 110 × 125 | 2 | 220 | 300 | 230, 50 | 2500 |
| PISO45S-12 | PISO45G-12 | 12 | 324 | 60 × 60 × 90 | 80 × 110 × 155 | 3 | 230 | 320 | 230, 50 | 2500 |
| PISO45S-16 | PISO45G-16 | 16 | 450 | 60 × 60 × 125 | 80 × 130 × 175 | 4 | 340 | 430 | 230, 50 | 4000 |
| PISO45S-21 | PISO45G-21 | 21 | 600 | 60 × 80 × 125 | 80 × 130 × 195 | 5 | 365 | 465 | 230, 50 | 4000 |
| PISO45S-28 | PISO45G-28 | 28 | 800 | 80 × 80 × 125 | 100 × 130 × 210 | 5 | 390 | 500 | 230, 50 | 4500 |
| PISO45S-34 | PISO45G-34 | 34 | 1000 | 80 × 80 × 155 | 100 × 130 × 220 | 5 | 430 | 525 | 230, 50 | 4500 |
Note: Model numbers, capacities, chamber dimensions, overall dimensions, shelf quantities, weights, electrical ratings and power values are based on the supplied Pharma Refrigerator brochure.
Applications of Pharma Refrigerator
The Pharma Refrigerator is designed for controlled temperature storage of pharmaceutical, biological and laboratory materials within the standard 2°C to 8°C pharma temperature range. It is suitable for applications where reliable temperature control and organized storage conditions are important for temperature-sensitive materials.
The Pharma Refrigerator is suitable for pharmaceutical storage, stability studies, research and development, vaccine and biological storage and general laboratory use. Standard and GMP configurations provide options for laboratories with different construction, storage and application requirements.
- Pharmaceutical Storage: Suitable for controlled-temperature storage of pharmaceutical materials requiring the standard 2°C to 8°C pharma storage range.
- Stability Studies: Suitable for pharmaceutical stability-study applications where controlled storage temperature is required.
- Research & Development: Suitable for laboratory research and development activities involving temperature-sensitive pharmaceutical and biological materials.
- Vaccine & Biological Storage: Designed for controlled storage applications involving vaccines and biological materials requiring refrigerated conditions.
- General Laboratory Use: Suitable for laboratory applications requiring organized and controlled 2°C to 8°C storage of temperature-sensitive materials.
Optional Accessories & Advanced Features
The Pharma Refrigerator can be configured with advanced data-recording, monitoring and reporting features for laboratories that require electronic documentation and greater visibility of storage conditions. These features are particularly useful where temperature records, audit information and historical data need to be maintained for laboratory and pharmaceutical applications.
The advanced data-management configuration includes 21 CFR Part 11 compliant software, audit trail, multilevel passwords, online and offline data storage, multi-chamber data acquisition and different reporting options. These features provide a structured approach to recording and reviewing refrigerator operating information.
- 21 CFR Part 11 Compliant Software: Software configuration for electronic data management and documentation requirements.
- Audit Trail: Maintains an electronic record of relevant system activities for traceability.
- Multilevel Passwords: Provides different levels of user access for controlled operation of the system.
- Online Data Storage: Supports storage of operating data while the system is connected and recording.
- Offline Data Storage: Provides the facility to retain recorded information for later review and documentation.
- Multi-Chamber Data Acquisition: Allows data acquisition from multiple chambers in suitable configurations.
- Tabular Reports: Recorded information can be presented in a tabular format for review and documentation.
- Graphical Reports: Graphical presentation of recorded information supports easier review of temperature-related data.
- Mean Kinetic Temperature Report: MKT reporting is available as part of the advanced reporting features indicated in the brochure.
- Alarm Deviation Report: Provides reporting of recorded alarm deviations for review and documentation.
- Time Synchronization: Time synchronization is included among the advanced data-management features.
Why Choose Phoenix India Solutions for Pharma Refrigerator?
Phoenix India Solutions provides laboratory equipment solutions for pharmaceutical, research, quality-control and other laboratory applications where reliable temperature-controlled storage is important. Our Pharma Refrigerator range is designed around the standard 2°C to 8°C pharma storage requirement, with Standard and GMP configurations available for different laboratory needs.
The Pharma Refrigerator range combines PID-based temperature control, RTD Pt-100 sensing, forced-air circulation, CFC-free refrigeration and insulated construction with advanced data-recording and software options. This provides laboratories with a choice of configurations based on their storage, monitoring and documentation requirements.
- Standard 2°C to 8°C Storage: Designed for controlled-temperature storage applications within the standard pharma temperature range.
- Standard & GMP Models: Available in Standard and GMP configurations to suit different laboratory and pharmaceutical storage requirements.
- Wide Capacity Range: Available in capacities from 90 Litres to 1000 Litres.
- Precise Temperature Control: Microprocessor-based PID controller with auto-tune facility and RTD Pt-100 temperature sensing.
- Reliable Refrigeration: CFC-free compressor with R134a refrigerant and forced-air circulation system.
- Robust Construction: Double-walled construction with PUF insulation, stainless-steel chamber and secure viewing door arrangement.
- Advanced Data Management: Optional software features include 21 CFR Part 11, audit trail, multilevel passwords and online/offline data storage.
- Advanced Reporting: Tabular and graphical reports, Mean Kinetic Temperature reports and alarm deviation reports are available as part of the advanced software configuration.
- Application-Focused Solutions: Suitable for pharmaceutical storage, stability studies, research and development, vaccine and biological storage and general laboratory use.
- Customized Solutions: Configurations can be discussed according to specific storage, capacity and application requirements.
- Pan India Supply & Support: Phoenix India Solutions provides laboratory equipment solutions and support for customers across India.
Interested in Pharma Refrigerator?
Looking for a reliable Pharma Refrigerator for pharmaceutical storage, vaccine and biological storage, stability studies, research or laboratory applications?
Phoenix India Solutions offers 2°C to 8°C Pharma Refrigerators in Standard and GMP configurations, with capacities ranging from 90 Litres to 1000 Litres.
Share your required capacity, application and technical requirements with our team. We can help you identify the appropriate configuration and available advanced monitoring and data-management options for your application.
Contact Phoenix India Solutions for product details, technical specifications and a quotation.
