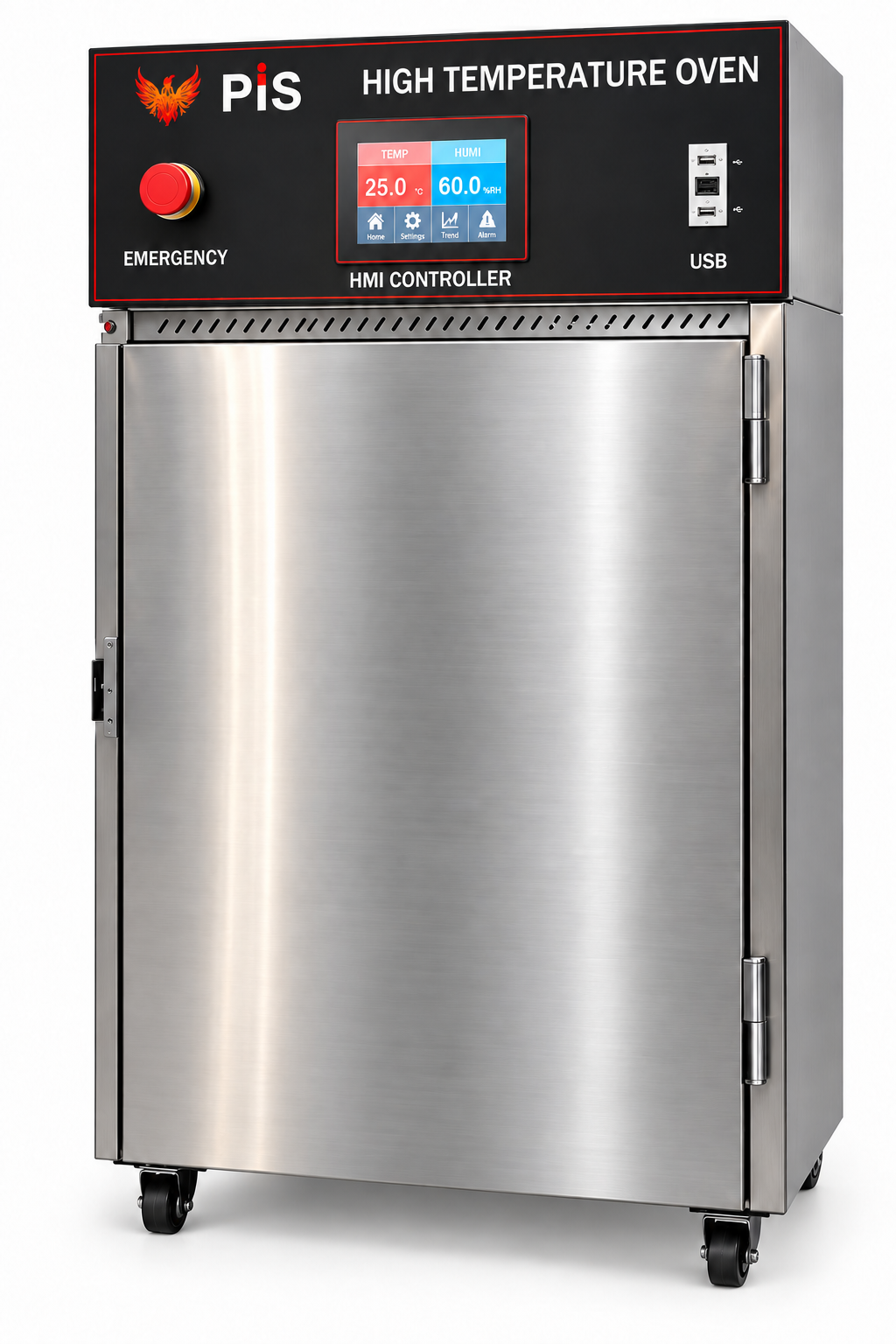

HIGH TEMPERATURE OVEN – 400°C
PRECISION HEATING FOR DEMANDING APPLICATIONS
Designed for high temperature applications, Phoenix India Solutions (PIS) High Temperature Oven up to 400 °C delivers exceptional performance, reliability and durability. Ideal for research, industrial and quality control applications that require precise and uniform high temperature conditions.
Key Features & Benefits
- Electrically heated Memmert type oven
- Triple body construction
- SS 304 inner (or MS/GI), insulated design
- Available in Standard (powder coated) & GMP (SS 304) models
- Microprocessor based PID temperature controller
- Inbuilt timer (99.99 Hrs) with buzzer
- Safety thermostat for over temperature protection
- Uniform temperature with blower motor
- High grade insulation with glass wool
- Analog & digital display for complete monitoring
- Robust, reliable and energy efficient
Construction
- Triple body construction
- Standard Model: SS 304 (or MS/GI) inner, SS 304 & G.I intermediate, G.I outer with powder coating
- GMP Model: SS 304 inner, SS 304 intermediate, SS 304 outer (matt finish)
- Attractive finished with Siemens grey and peacock blue (Standard)
- SS 304 mirror finish inner & matt finish outer (GMP)
- Glass wool dense grade insulation
Control Panel / Display
- Microprocessor based PID controller with dual display
- Inbuilt timer (99.99 Hrs.)
- Safety thermostat
- Digital display for present, set temperature, time & profile
- Analog display for input voltage and load current
- Siemens/INT contactor for switching
Optional Advanced Features & Automation
Advanced PLC & HMI Control with 7″ HMI Colour Touch Screen
PC Interface & RS-485 Communication
CFR 21 Part 11 Compliance Software for Data Management
Mobile Alert via GSM Technology
Data Bank for Recording, Storage & Printing
Online Uninterrupted Power Supply for PLC
4 & 8 Point Temperature Monitoring & Recording
Technical Specifications
| Parameter | Specification |
|---|---|
| Type of Oven | Electrically heated Memmert type |
| Max. Working Temperature | 300°C |
| Continuous Working Temperature | 300°C |
| Temperature Controller | Microprocessor based PID |
| Timer | Inbuilt 99.99 Hrs. (bypassable) |
| Safety Thermostat | Provided |
| Blower Motor | Flange type, 1/20 HP |
| Heater | Tubular heater with clamp |
| Insulation | Glass wool dense grade |
| Power Supply | 230 VAC, 50 Hz, 1 Phase |
| Accuracy | ± 0.5°C |
| Temperature Sensor | Calibrated RTD type, upto 400°C, ± 0.1°C |
| Display | Digital (PV, SV, Time) & Analog (Input Voltage, Load Current) |
| Electrical Requirement | 220–240V, 50/60Hz, Single Phase |
Safety & Interlocks
• Overload safety cut-off
• Over temperature protection
• Safety for input power fluctuation
• 1-phase indication lamp
• Emergency switch off
Available Models & Specifications
| Models | Chamber Volume | Internal Size (W×H) in cm | External Size (W×H) in cm | Capacity Watts | No. of Shelf | Power Consumption | Shipping Dimension | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| PIS0102a | 27 Ltrs. | 30 × 30 × 30 | 41 × 43 × 62 | 1500 | 1 | 6 amp | 5 Cu. Ft. | 22 Kg |
| PIS0102b | 43 Ltrs. | 35 × 35 × 35 | 46 × 48 × 67 | 2000 | 1 | 8 amp | 6.5 Cu. Ft. | 26 Kg |
| PIS0102c | 91 Ltrs. | 45 × 45 × 45 | 56 × 58 × 77 | 2500 | 2 | 10 amp | 11 Cu. Ft. | 33 Kg |
| PIS0102d | 121 Ltrs. | 45 × 45 × 60 | 56 × 58 × 94 | 3000 | 2 | 12 amp | 13.5 Cu. Ft. | 45 Kg |
| PIS0102e | 216 Ltrs. | 60 × 60 × 60 | 71 × 73 × 94 | 3500 | 2 | 15 amp | 20.72 Cu. Ft. | 55 Kg |
| PIS0102f | 324 Ltrs. | 60 × 60 × 90 | 71 × 73 × 125 | 4000 | 3 | 16 amp | 27 Cu. Ft. | 69 Kg |
Why Choose Phoenix India Solutions (PIS)
• Application-focused product selection based on your laboratory requirements.
• Support for instrument selection, quotation and technical discussions.
• Complete documentation and coordination with the manufacturer.
• Responsive after-sales assistance and service coordination.
• Solutions suitable for pharmaceutical, research, industrial and quality-control laboratories
