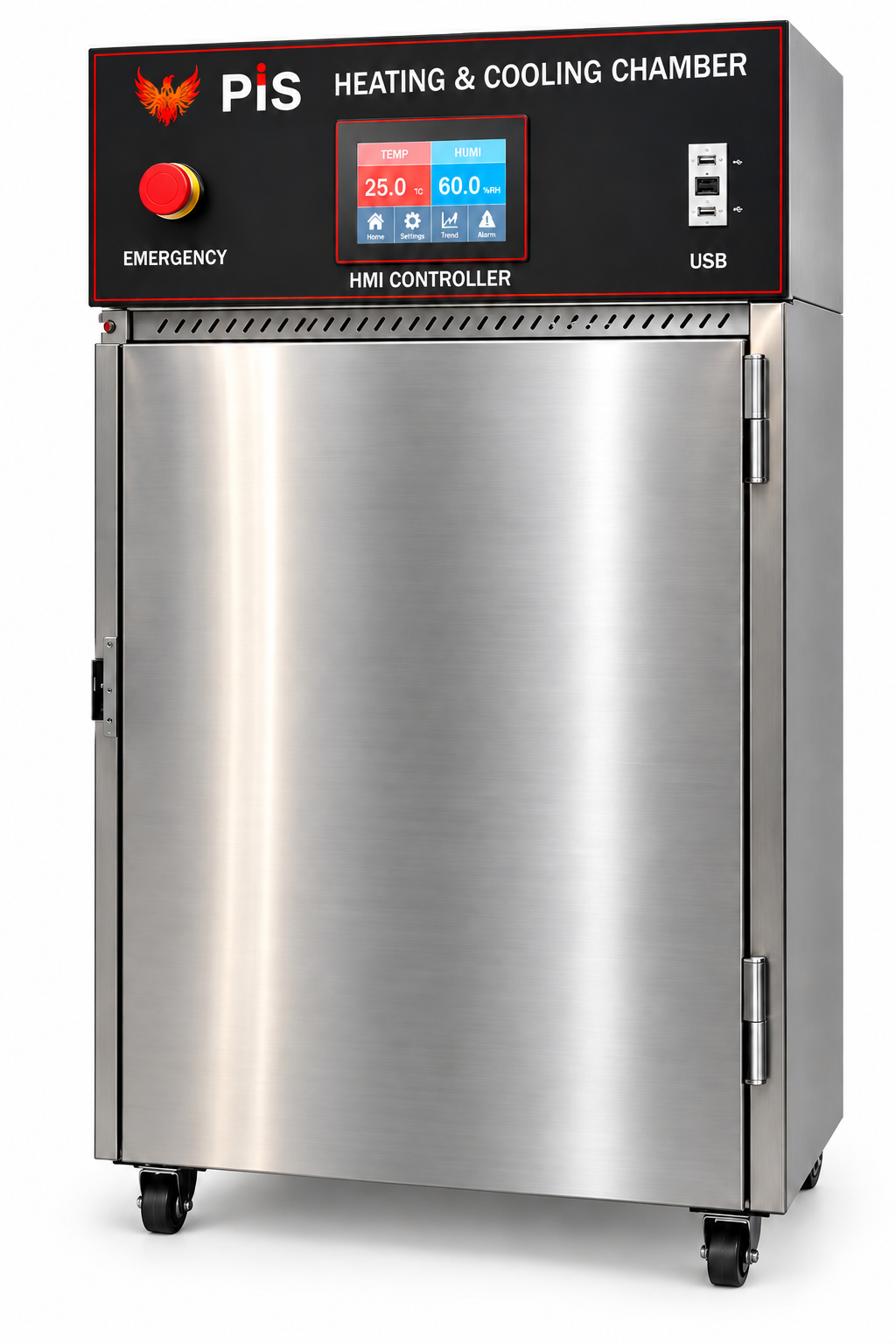

Heating & Cooling Chamber
Environmental Test Chamber with Wide Temperature Range from -40°C to 150°C
The Heating & Cooling Chamber is designed for precise environmental control across a wide temperature range of -40°C to 150°C. It provides controlled heating and cooling conditions for critical applications including stability studies, R&D, pharmaceutical testing and other temperature-controlled laboratory applications.
Key Features & Benefits
- Wide temperature range of -40°C to 150°C.
- Reliable performance with GMP compliant design.
- 7″ HMI colour touch screen with PLC-based control.
- Data integrity and 21 CFR Part 11 compliance options.
- Ideal for stability studies and R&D.
- Microprocessor/PLC-based control system with PID control.
- Programmable operation with up to 5 programs and 32 steps.
- 10,000-reading offline data logger.
- Ethernet communication.
- Robust GMP-model construction with SS 304.
- DQ, IQ, OQ and PQ support with calibration and test certificates.
Construction
- Double walled, SS 304 construction with inner mirror finish and outer matt finish.
- 3″ thick CFC-free PUF insulation.
- Double door — inner full-view viewing door & outer insulated door with lock and key.
- 50 mm validation port with silicon rubber seal.
- Stainless steel rod trays with adjustable height.
- Mounted on castor wheels with front lock arrangement.
- Fluorescent light with auto ON/OFF on door operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Temperature Range | -40°C to 150°C |
| Temperature Accuracy | 1°C |
| Temperature Uniformity | ± 2°C |
| Relative Humidity | No RH |
| Ramp Up Time | No Ramp Up Time facility, usually 0.3 to 0.7°C/min (depending upon heat load) |
| Temperature Sensor | A-grade RTD (PT-100) |
| Temperature Resolution | 0.1°C |
| Display | 7" colour touch screen (Delta) |
| Control System | PLC-based with 7" HMI, PID control |
| Data Logger | Offline data logger with 10,000 reading storage |
| Communication | Ethernet communication |
| Programmable Features | 5 programs, up to 32 steps, repeat up to 999 times |
| Heating System | U-shaped Nichrome heater (SS sheathing) |
| Cooling System | Three compressors with R134a, R404 & R23 (cascade) |
| Air Circulation | Flange motor with impeller & blower |
| Lighting | Fluorescent light with auto ON/OFF on door operation |
| Protection | IP 22 |
Heating & Cooling System
- U-shaped Nichrome heater (SS sheathing).
- Three compressors with R134a, R404 & R23 (cascade).
- Bypass solenoid valve for high temperature.
- Flange motor with impeller & blower.
- Air circulation by motor & fan continuously recirculates air through heater, evaporator and back to chamber to achieve desired temperature stability.
- The design reduces power consumption by 50%.
Safety Features
- Temperature: Heater cut-off by thermostat, auto reset.
- Humidity: Boiler cut-off, alarm & buzzer.
- Low water level: Boiler cut-off with alarm.
- Human safety: Individual MCBs, proper earthing.
- Audio & visual alarms for temperature deviation.
- Alarm for sensor failure.
- Alarm for component failure.
- Alarm for mains failure.
- Alarm for door open.
- Alarm for thermostat high.
Control & Monitoring System
- PLC-based control system with 7″ HMI.
- Offline data logger with storage of 10,000 readings.
- Dot-matrix printer.
- Relays, contactors and MCB.
- PID control.
- Ethernet communication.
- IP 22 protection.
- 7″ colour touch screen (Delta).
- Set/process value display.
- Alarm indication.
- Graph display.
- Password protection.
- Multi-set point operation.
Programmable Features
- 5 programs
- Up to 32 steps
- Repeat up to 999 times
- Programmable output (TC1) available
Data Integrity & 21 CFR Part 11
- 21 CFR Part 11 compliant software (optional).
- Web-based software.
- Audit trail & data log.
- Unlimited users.
- Multi-level login.
- Temperature data history.
- Alarm & data log.
- Data log & alarm reports.
- Password expiry & auto logout.
- Connect up to 20 chambers.
Applications & Industries
- Electronics & Semiconductor
- Aerospace
- Pharmaceuticals
- Automobile
- Packing
- Medical Storage
- R&D Activity
Models & Size Range
| Standard Model | GMP Model | Cu. Ft. | Litres | Chamber (W × D × H) |
Overall (W × D × H) |
Unit | Packed | VAC/Hz | Watts |
|---|---|---|---|---|---|---|---|---|---|
| PIS-3(40) | PIS G-3(40) | 3 | 90 | 45×45×45 | 60×95×110 | 2 | 110 | 230,50 | 1500 |
| PIS-4(40) | PIS G-4(40) | 4 | 120 | 45×45×60 | 60×95×125 | 2 | 150 | 230,50 | 2000 |
| PIS-8(40) | PIS G-8(40) | 8 | 200 | 60×60×60 | 80×110×125 | 2 | 220 | 230,50 | 2500 |
| PIS-12(40) | PIS G-12(40) | 12 | 324 | 60×60×90 | 80×110×155 | 3 | 230 | 230,50 | 2500 |
| PIS-16(40) | PIS G-16(40) | 16 | 450 | 60×60×125 | 80×130×175 | 4 | 340 | 230,50 | 4000 |
| PIS-21(40) | PIS G-21(40) | 21 | 600 | 60×80×125 | 80×130×195 | 5 | 365 | 230,50 | 4000 |
| PIS-28(40) | PIS G-28(40) | 28 | 800 | 80×80×125 | 100×130×210 | 5 | 390 | 230,50 | 4500 |
| PIS-34(40) | PIS G-34(40) | 34 | 1000 | 80×80×155 | 100×130×220 | 5 | 430 | 230,50 | 4500 |
DQ, IQ, OQ, PQ & Documentation Support
- DQ, IQ, OQ & PQ
- Protocols
- Calibration certificates
- Test certificates
- Manuals
- Diagrams
- Training
Why Choose Phoenix India Solutions (PIS)
- Quality products from trusted manufacturers.
- Application-oriented environmental chamber solutions.
- Technical support & after-sales service.
- Installation, validation & documentation support.
- Support for DQ, IQ, OQ & PQ requirements.
- Competitive pricing and quick delivery.
- Your long-term partner in scientific growth.
Interested in This Heating & Cooling Chamber?
Get in touch with Phoenix India Solutions for Heating & Cooling Chamber specifications, temperature range requirements, technical discussions, validation support, pricing and quotation.
