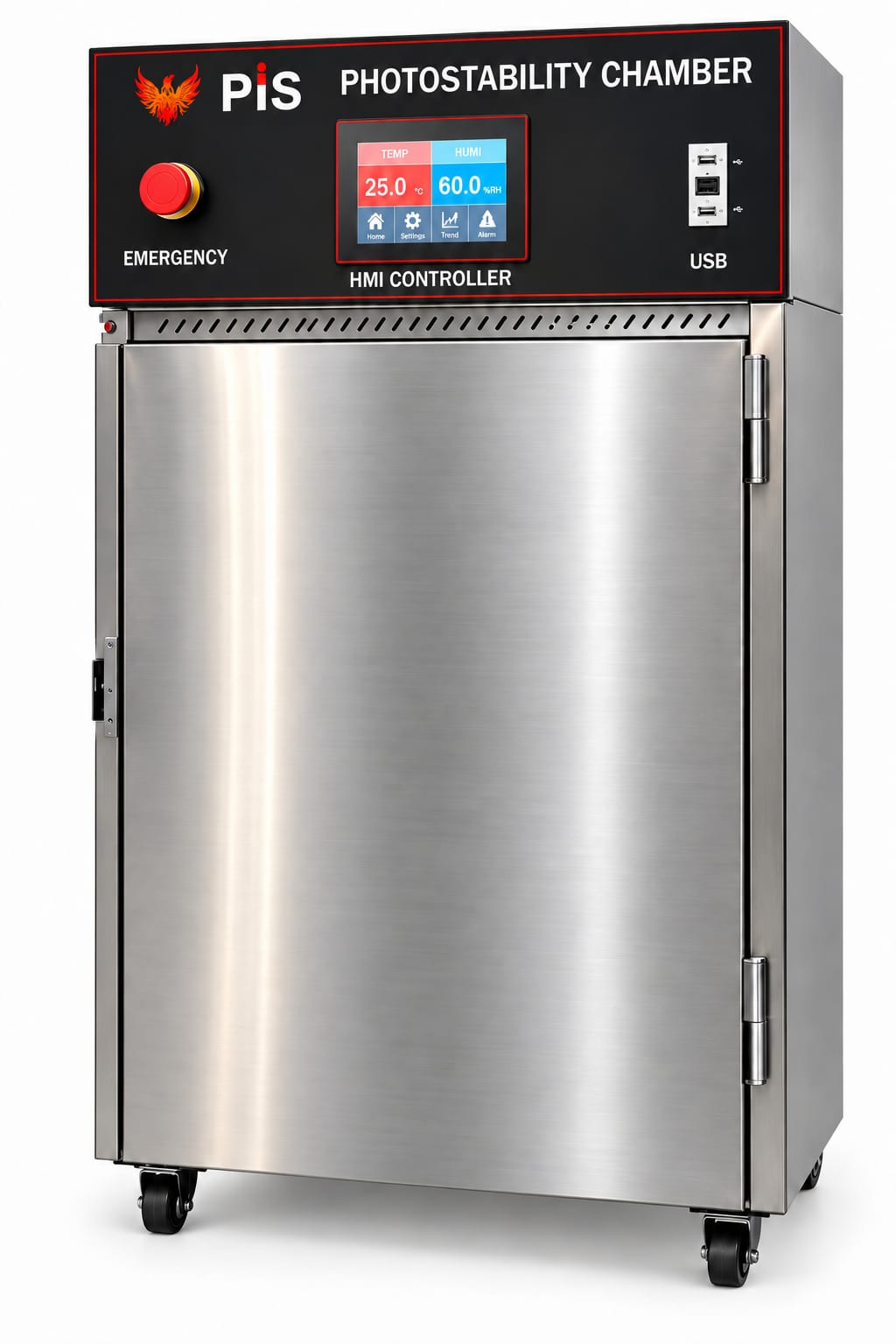

Photostability Chamber
ICH Q1B Photostability Testing Chamber for Pharmaceutical & R&D Applications
A Photostability Chamber is designed to evaluate how pharmaceutical products, drug substances, formulations, cosmetics, nutraceuticals and other light-sensitive materials respond to controlled exposure to visible light and UV light. It provides controlled temperature, humidity and light conditions to simulate defined environmental exposure and assess changes in the product over time.
It is primarily used for ICH Q1B photostability studies, helping laboratories determine the effect of light exposure on product quality, stability and performance.
Construction
- Double-walled construction with PUF insulation.
- SS 304 mirror-finished inner chamber.
- GMP model with SS exterior (optional).
- Inner full-view glass door & insulated outer door.
- 50 mm validation port with silicone rubber seal.
- 3″ thick CFC-free PUF insulation.
- Robust and durable design.
Control Panel
- Microprocessor-based PID controller with auto-tuning.
- 7″ Colour Touch Screen HMI (PLC optional).
- PT-100 temperature sensor.
- Direct capacitance-type RH sensor.
- Audio-visual alarm system.
Key Features & Benefits
- Fluorescent lamp system with separate switching for visible and UV light sources.
- Cyclic timer for light-intensity control.
- Microprocessor-based PID controller with auto-tuning.
- 7″ Colour Touch Screen HMI (PLC optional).
- PT-100 temperature sensor.
- Direct capacitance-type RH sensor.
- Audio-visual alarm system.
- Interior illumination for working area.
- Adjustable stainless steel shelves.
- Castor wheels with front locking.
- Designed for ICH Q1B photostability testing.
- Controlled temperature, humidity and light exposure for reliable testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Temperature Range | 5°C to 60°C |
| Temperature Accuracy | ± 0.1°C |
| Temperature Uniformity | ± 1.0°C |
| Humidity Range | 25% to 95% RH |
| Humidity Accuracy | ± 3% RH |
| Humidity Uniformity | ± 3% RH |
| Visible Light Intensity | Approx. 12 Klux |
| UVA Intensity | Approx. 1.8 W/m² |
| Visible Light Exposure | 1.2 million Lux-hours (ICH Q1B) |
| UVA Exposure | 200 W/m² (ICH Q1B) |
| Temperature Display | Digital LED 3 ½ digit, Resolution 0.1°C |
| Humidity Display | Digital LED 3 ½ digit, Resolution 0.1% RH |
| Heating System | U shaped Nichrome wire heater in SS sheathing |
| Cooling System | Hermetically sealed CFC free Emerson compressor with R 134a refrigerant |
| Humidity System | Non condensing type steam injection system with water level arrangement with insulation to save heat energy |
| Air Circulation | Flange motor with impeller and blower |
| Interior Illumination | Provided for working area |
| Blowers | Two nos. of blower from 450 Ltr onwards |
Safety Features
- Over heat & humidity cutoff with alarm.
- Low temperature & humidity alarm.
- Low boiler water level safeguard.
- Electrical overload compressor cutoff.
- Time delay for compressor switch on.
- Electrical short circuit breaker.
Data Management & Optional Features
- 21 CFR Part 11 compliant software with audit trail.
- Multi-level passwords.
- Online & offline data storage.
- Multi chamber data acquisition.
- Tabular and graphical reports.
- Mean kinetic temperature report.
- Alarm report & attractive graphs.
- Data recorder / data bank (optional).
- PC interface with RS 485 (hardware only) (optional).
- 4-point / 8-point temperature & RH scanner (optional).
- GSM / mobile alarm notification (optional).
- Standby refrigeration system (optional).
- Standby humidity system (optional).
- Validation support — DQ, IQ, OQ, PQ
Applications & Industries
- Pharmaceuticals (ICH Q1B Studies)
- Drug Substances & Drug Products
- Stability Testing
- R&D and Formulation Development
- Quality Control Laboratories
- Cosmetics, Nutraceuticals & Other Light Sensitive Products
Available Capacities
| 90 L | 120 L | 200 L | 324 L | 450 L |
| 600 L | 800 L | 1000 L | 1500 L | 2000 L |
Custom sizes & specifications available on request.
