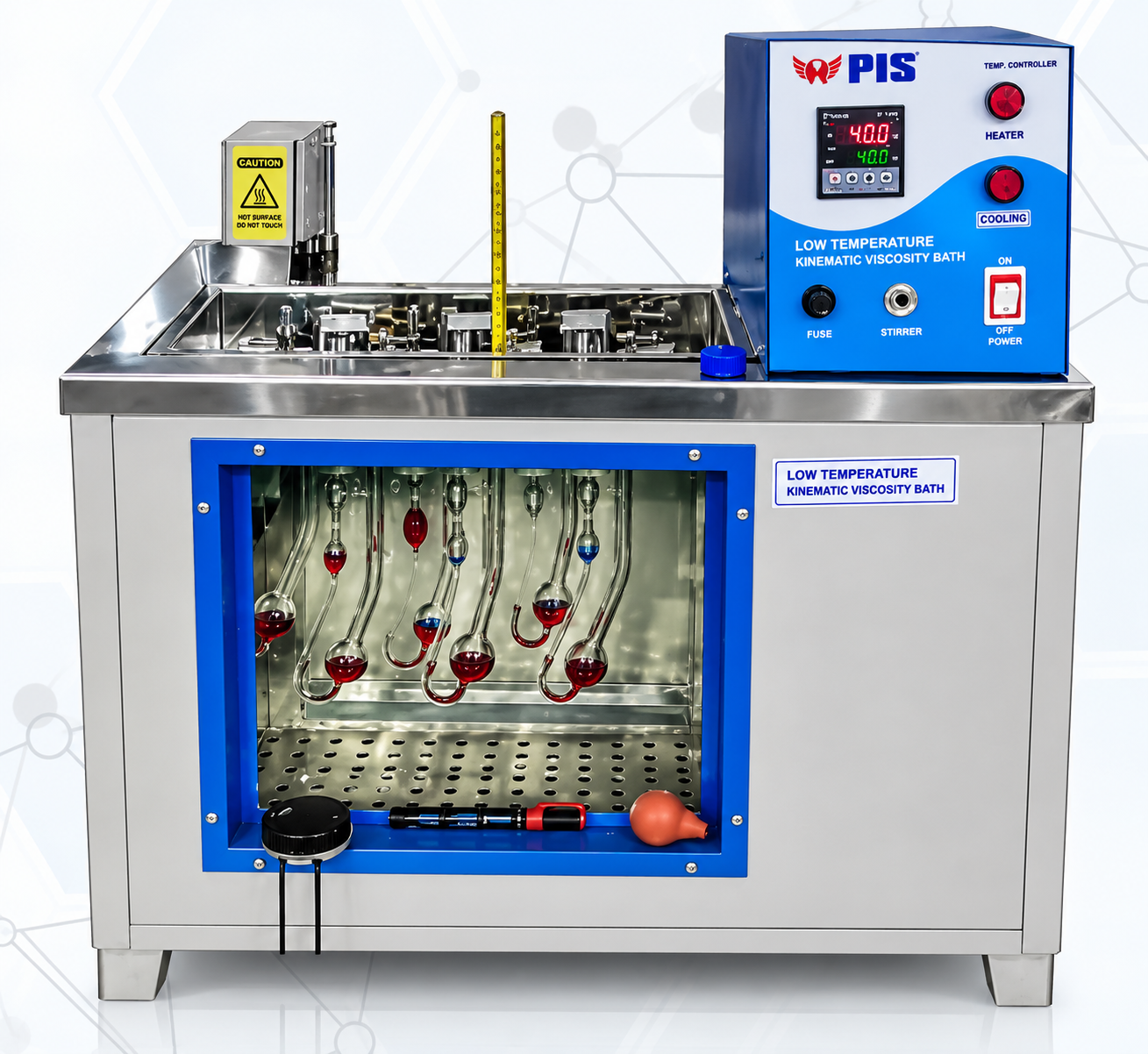

Low Temperature Kinematic Viscosity Bath
Precise Temperature Control for Accurate Kinematic Viscosity Measurement
Kinematic viscosity is of primary importance in the design and selection of a wide variety of petroleum products. Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.
Key Features & Benefits
- Electrically heated bath
- Accommodates 4 viscometers
- Inner chamber dimension: 19″ × 15″ × 7″
- Outer body size: 26″ × 26″ × 19″
- Temperature Range Options: 10 to 120°C / -20 to 50°C / -40 to 50°C
- Max working temperature: 150.0°C
- Bath capacity: 4 sample at a time
- Bath volume: 22 Ltr capacity
- SS tubular heater
- Hermetically sealed Kirloskar compressor
- CFC free refrigerant
- Accuracy: +/- 0.01 to +/- 0.03°C
- Readability: +/- 0.01°C up to 99.99°C and 0.1°C up to 150.0°C
- Microprocessor based PID temperature controller
- Calibrated RTD type thermocouple
- Double wall construction with high density PUF insulation
- Powder coated external surface
Applicable Standards
- ASTM D445, ASTM D2532, ASTM D6074, ASTM D6158, IP 71, ISO 3104, DIN 51550, FTM 791-305
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Electrically heated bath |
| Viscometer Capacity | Accommodates 4 viscometers |
| Inner Chamber Dimension | 19" × 15" × 7" |
| Outer Body Size | 26" × 26" × 19" |
| Temperature Range Options | 10 to 120°C / -20 to 50°C / -40 to 50°C |
| Max Working Temperature | 150.0°C |
| Bath Capacity | 4 samples at a time |
| Bath Volume | 22 Ltr capacity |
| Heater | SS tubular heater |
| Cooling | Hermetically sealed Kirloskar compressor |
| Compressor | KCN 415 LAG |
| Refrigerant | R-134 a (CFC free) |
| Accuracy | +/- 0.01 to +/- 0.03°C |
| Readability | +/- 0.01°C up to 99.99°C and 0.1°C up to 150.0°C |
| Temperature Controller | Microprocessor based PID temperature controller (Eurotherm or reputed make) |
| Temperature Sensor | Calibrated RTD type thermocouple up to 150°C (at accuracy of +/- 0.01°C) |
| Construction | Double wall construction, thermally insulated with high density PUF |
| External Surface | Powder coated |
| Input Power Supply | 230 V AC, 50 Hz, 1 Phase with 15 Amp current rating |
| Heating Load | 3 kW |
| Electrical Requirement |
220–240V, 50/60Hz, Single Phase, 15.0A OR 115V, 50/60Hz, Single Phase, 30A |
Accessories Supplied With Equipment
- Universal viscometer holder — 4 no.
- Suction bulb — 1 no.
- Glass fuse — 1 no.
- Glass viscometer with constant at 40, 50 & 100°C of any size and any type with calibration certificate traceable to Cannon Oil USA (on demand of customer only, price extra)
Applications & Industries
- Petroleum Testing Laboratories
- Lubricant Testing Laboratories
- R&D Laboratories
- Quality Control Laboratories
- Industrial Laboratories
