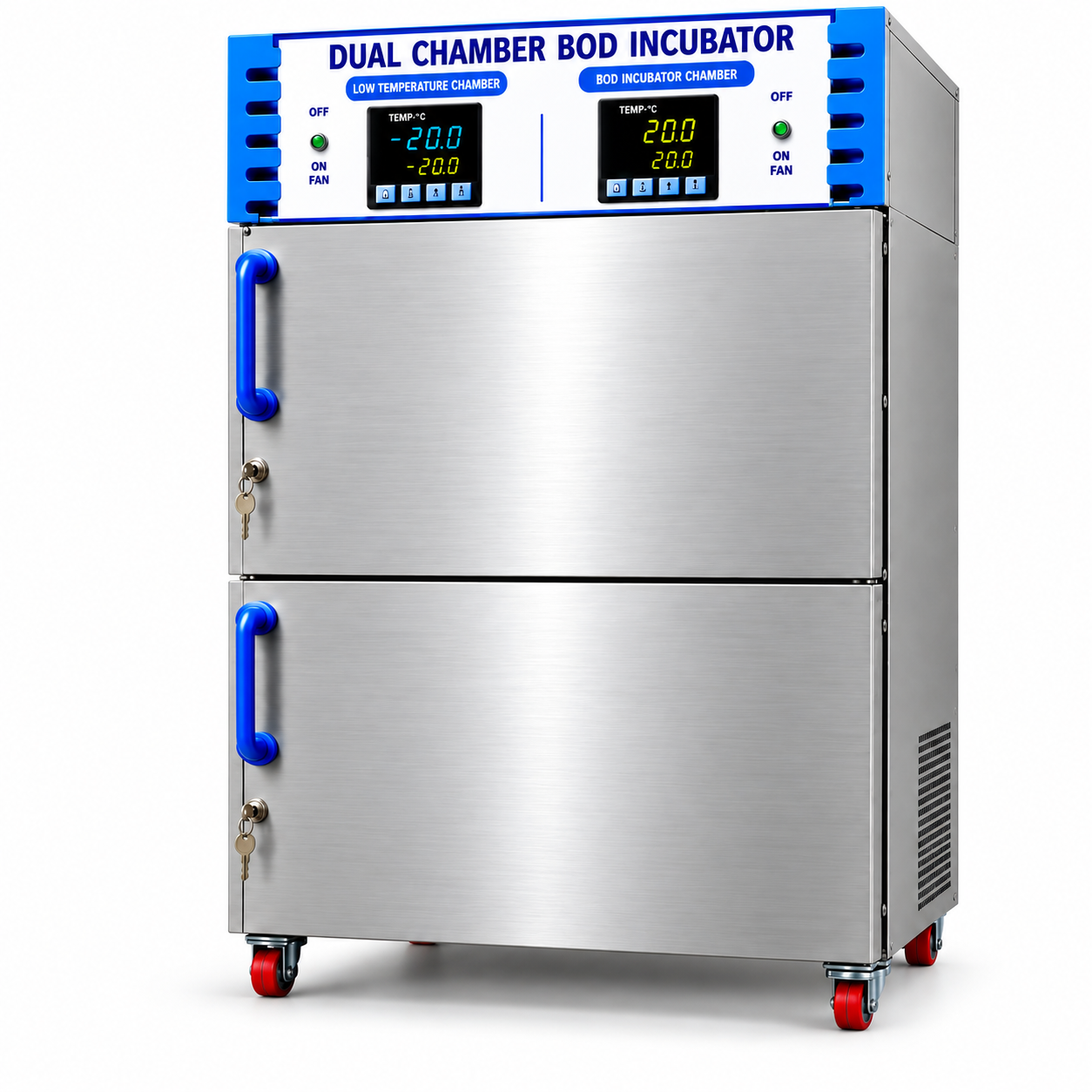

Dual Chamber BOD Incubator Cum Incubator
Dual Chamber BOD & Laboratory Incubator for Precise Temperature Control
The Dual Chamber BOD Incubator Cum Incubator provides two independent chambers for BOD incubation and general incubation with separate controls. It combines precise temperature control, advanced PLC-based monitoring, data management and safety features, making it suitable for microbiology, BOD incubation, pharmaceutical studies, quality control and research applications.
Key Features & Benefits
- Dual Chamber Design — Two independent chambers for BOD incubation and general incubation with separate controls.
- Advanced Control System — HMI PLC with 7″ touch screen, Ethernet connectivity and 21 CFR Part 11 compliant software.
- Enhanced Security — Door Access System (DS) with password protection and audit trail.
- Multi-Alarm Notifications — External hooter, GSM (SMS alert) and email alert for critical events.
- Validation Support — DQ, IQ, OQ, PQ protocols with calibration certificate and test certificate.
- Energy Efficient — Optimized design reduces power consumption by up to 50%.
Technical Specifications
| Parameter | Upper Chamber – BOD Incubator | Lower Chamber – Incubator |
|---|---|---|
| Temperature Range | 5°C to 60°C | Ambient +5°C to 60°C |
| Temperature Accuracy | 0.2°C | ±0.5°C |
| Temperature Uniformity | ±1°C | ±1°C |
| Control System | Fully PLC based control system with 7" HMI touch screen (Delta) | |
| Data Storage | 10,000 data | |
| Communication | Ethernet | |
| Protection | IP22 | |
| Temperature Scanner | 4 sensors (SCN-4) | |
| Sensor Changeover | Auto sensor changeover (Safety-1) | |
| Software | Web-based SOFTW-21, 21 CFR Part 11 compliant | |
| Software Connectivity | Connect up to 20 chambers | |
| Energy Efficiency | Optimized design reduces power consumption by up to 50% | |
Construction
- Double walled with PUF insulation (3″ thick).
- Inner chamber SS 304, mirror finish.
- Outer chamber SS 304, matt finish.
- Double door with inner viewing door.
- 50 mm validation port with silicon rubber seal.
- Stainless steel trays with adjustable height.
- Fluorescent light with auto ON door operation.
- Castor wheels with front lock arrangement.
Controlling System:
- Fully PLC based control system.
- 7″ HMI touch screen (Delta).
- PID control with high accuracy.
- Data storage up to 10,000 data.
- IP22 protection.
- PC interface with Ethernet (PCI-1).
- Auto sensor changeover (Safety-1).
- Temperature scanner — 4 sensors (SCN-4).
Software 21 — 21 CFR Part 11:
- Web-based software (SOFTW-21).
- 21 CFR Part 11 compliant.
- Can connect 20 chambers.
- Authorized access with multi-level login.
- Auto backup, audit trail, event log and alarm report.
- Door access report & HMI audit report.
- Data logging & scanner report.
- Password expiry & auto logout.
Alarm Generation:
- Temperature deviation — High / Low
- Power failure
- Emergency
- Door open
- Thermostat high / low
- Audio & visual alarm
- External hooter (EXT. HTR)
- Email alert (EMAIL)
- GSM mobile SMS alert (GSM)
Validation & Documentation Support:
- DQ, IQ, OQ, PQ protocols
- Calibration certificate
- Test certificate
Applications & Industries
- Microbiology Labs
- R&D Labs
- Packaging
- Medical Storage
- R&D Activity
Ideal For:
- Stability Studies
- BOD Incubation
- Research & Development
- Pharmaceutical Studies
- Quality Control Laboratories
- Educational & Research Institutes
Dimensions & Size Range
| Model | S. No. | Cu. Ft. | Litres | Inner (cm) W×D×H | Outer (cm) W×D×H | Shelves | Watts |
|---|---|---|---|---|---|---|---|
| STD/GMP | 1 | 3 | 90 | 45×45×45 | 60×95×175 | 2 | 1200 |
| STD/GMP | 2 | 4 | 120 | 45×45×60 | 60×95×205 | 2 | 1400 |
| STD/GMP | 3 | 8 | 200 | 60×60×60 | 73×93×210 | 2 | 1500 |
| STD/GMP | 4 | 16 | 450 | 60×60×125 | 95×127×219 | 4 | 3000 |
Custom sizes/configurations available as per requirement.
Why Choose Phoenix India Solutions
- Application-focused selection of laboratory incubators based on your testing requirements.
- Support for BOD incubator and dual-chamber incubator selection.
- Technical discussions and quotation support for laboratory applications.
- Assistance for microbiology, pharmaceutical, R&D and quality-control requirements.
- Support for documentation, validation and coordination with the manufacturer.
- Responsive after-sales assistance and service coordination.
