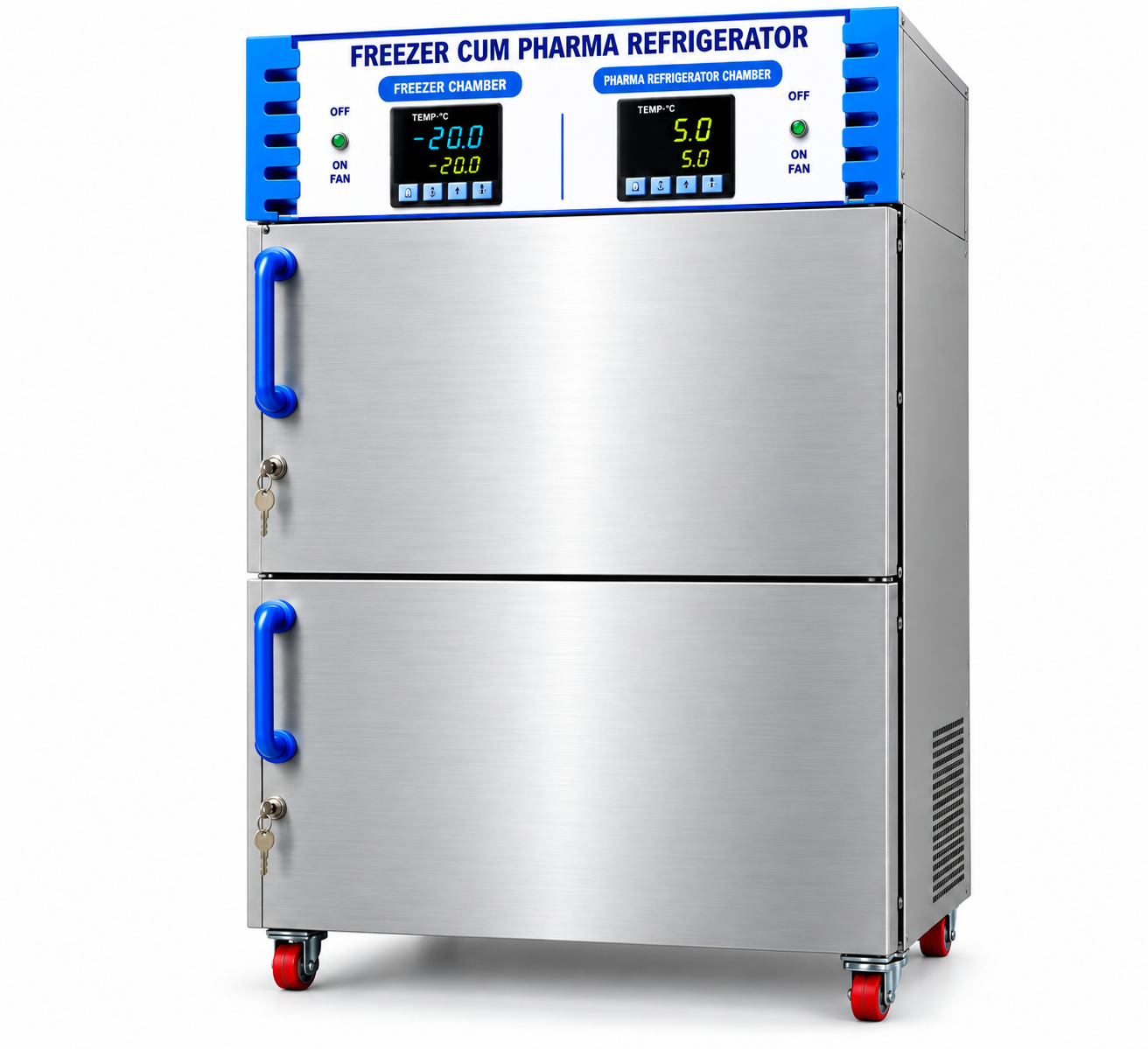

Dual Chamber Freezer Cum Pharma Refrigerator
Dual Temperature Pharmaceutical Storage System for Freezer & Refrigerator Applications
High Performance. Two Chambers. Infinite Possibilities.
Two independent chambers with separate temperature controls, designed for precise temperature control and suitable for a variety of laboratory applications.
Key Features & Benefits
- Dual Chamber Design — Two independent chambers with separate temperature controls.
- Precise Temperature Control — Digital PID controllers for accurate and uniform temperature.
- Wide Temperature Range — Suitable for a variety of laboratory applications.
- Safe & Durable — Robust construction with high quality insulation for long life and safety.
- Energy Efficient — Optimized heating system for low power consumption.
Technical Specifications
| Parameter | Upper Chamber | Lower Chamber |
|---|---|---|
| Temperature Range | 0 to -20°C | 2 to 8°C |
| Temperature Accuracy | ±2.0°C | ±1.0°C |
| Temperature Uniformity | ±3.0°C | ±2.0°C |
| Control System | Digital PID controllers with separate temperature controls | |
| Construction | Double walled modular structure with 3" thick PUF insulation | |
| Interior | Stainless Steel | |
| Exterior | Stainless Steel (SS 304) | |
| Interior Illumination | Provided | |
| Door | Full length observation glass door with secure gasket | |
| Door Lock | Handle and hinges with lock and key arrangement | |
| Protection | IP22 | |
| Data Storage | 10,000 readings | |
| PC Connectivity | RS 485 connection port | |
| Optional Software | 21 CFR Part 11 Compliance | |
General Features:
Constructions:
- Double walled modular structure with 3″ thick PUF insulation.
- Inside Stainless Steel and Outside Stainless Steel (SS 304).
- Interior illumination.
- Inside full length observation glass door with secure gasket.
- Handle and hinges for positive sealing with lock and key arrangement.
- Heavy-duty door hinges and latches to maintain a secure and uniform seal.
Controlling System
- PLC Based Controlling with 7″ Touch Screen
- HMI Display & PLC (OPTIONAL)
- Separate Connection for Main
- IP 22 Protection
- Data Storage of 10,000 Readings
- Controls Temp & Humidity using PID Loops
- Captures all the events with POWER OFF / Resume
- Water Level LOW/OK, Door Open/Close, etc.
- RS 485 Connection Port for PC Connectivity
- Authorized door Access only through password
- Door access report generation to see the door open activity with reason
- E-MAIL Alert (OPTIONAL)
- Mobile Alert (OPTIONAL)
Safety Features:
- Over heat temperature cut off with alarm
- Low temperature alarm
- Low boiler water level safeguard
- Electrical overload compressor cut off
- Time delay for compressor switch on
- Electrical short circuit breaker
Complete Alarms:
- Temperature Deviation
- Door Opening
- Water Supply Failure
- Component Failure
- Mains Failure
Software & Data Management:
- 21 CFR Part 11 COMPLIANCE (OPTIONAL)
- Single profile suitable for upto 50 equipments
- Automatic daily data back-up
- Audit trails
- MKT calculations
- Data export in PDF format
Application/Ideal for:
- Microbiology Labs
- Pharmaceutical Industry
- Research Institutes
- Biotechnology Applications
Models & Size Range
| Model | S. No. | Cu. Ft. | Litres | Inner (cm) W × D × H | Outer (cm) W × D × H | Shelves | Watts |
|---|---|---|---|---|---|---|---|
| STD/GMP | 1 | 3 | 90 | 45 × 45 × 45 | 60 × 95 × 175 | 2 | 1200 |
| STD/GMP | 2 | 4 | 120 | 45 × 45 × 60 | 60 × 95 × 205 | 2 | 1400 |
| STD/GMP | 3 | 8 | 200 | 60 × 50 × 69 | 73 × 93 × 210 | 2 | 1500 |
| STD/GMP | 4 | 16 | 450 | 60 × 60 × 125 | 95 × 127 × 219 | 4 | 3000 |
Why Choose Phoenix India Solutions
- Application-focused selection of pharmaceutical refrigeration and cold-storage solutions based on your requirements.
- Support for selecting dual-chamber freezer and pharmaceutical refrigerator systems.
- Technical discussions and quotation support for pharmaceutical, laboratory and research applications.
- Assistance with temperature-controlled storage requirements and product specifications.
- Complete documentation and coordination with the manufacturer.
- Responsive after-sales assistance and service coordination.
Interested in This Dual Chamber Freezer Cum Pharma Refrigerator?
Get in touch with Phoenix India Solutions for Dual Chamber Freezer Cum Pharma Refrigerator specifications, technical discussions, pricing and quotation.
