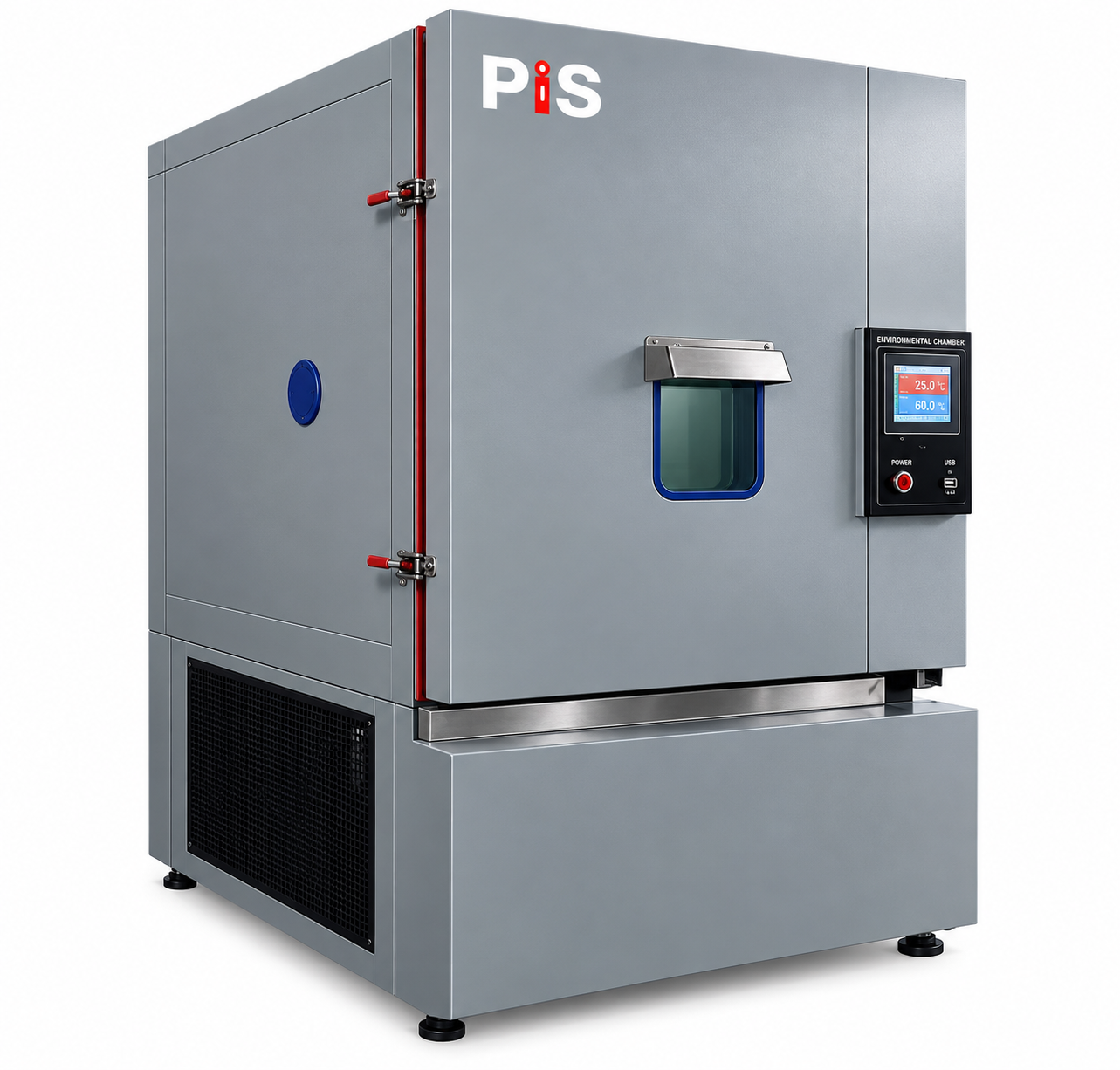

Environmental Chamber
Advanced Temperature & Humidity Environmental Chamber for Controlled Testing
The Environmental Chamber is designed to provide precise temperature and humidity control for critical environmental testing applications. With a wide temperature range of -40°C to 150°C and humidity range of 10 to 95% RH, it is suitable for stability studies, pharmaceutical applications, R&D, medical storage and other controlled environmental testing requirements.
Key Features & Benefits
- Chamber + Ethernet Communication Card + HMI (PLC 7) + SOFTW-21 + DS (Door Access System) + SAFETY-1
- Reliable and energy efficient design with 50% lower power consumption
- Double walled SS 304 construction with PUF insulation
- 7″ Color Touch Screen HMI (Delta) with advanced PLC control
- Offline data logger with 10,000 readings & Ethernet connectivity
- Multi set point programming — 5 programs, 32 steps, repeat up to 999 times
- Audit trail, alarm history, real-time graph & component status
- Door access control with password protection; biometric access optional
- Comprehensive safety features for equipment and human safety
Technical Specifications
| Parameter | Specification |
|---|---|
| Temperature Range | -40°C to 150°C |
| Temperature Accuracy | ±1°C |
| Temperature Uniformity | ±2°C |
| Humidity Range | 10 to 95% RH |
| Humidity Accuracy | ±2% RH |
| Humidity Uniformity | ±3% RH |
| Ramp Up Time | No Ramp Up Time facility; usually 0.3 to 0.7°C/min |
| Temperature Sensor | A Grade RTD (PT-100) |
| Resolution | 0.1°C |
| Display | 7" Color Touch Screen (Delta) |
| Control System | PLC based with 7" HMI |
| Data Logger | Offline data logger – 10,000 readings |
| Communication | Ethernet |
| Programming | 5 programs, 32 steps, repeat up to 999 times |
| Heating System | U-shaped Nichrome heater with SS sheathing |
| Cooling System | Emerson compressors – R134a, R404 & R23 cascade |
| Air Circulation | Circulation motor & fan |
| Protection | IP22 |
Construction, Heating & Cooling System, Safety Features, Validation & Calibration
Construction:
- Double walled, SS 304 construction with inner mirror finish and outer matt finish.
- 3″ thick CFC-free PUF insulation.
- Double door: inner full-view viewing door & outer insulated door with lock and key.
- 50 mm validation port with silicon rubber seal.
- Stainless steel trays with adjustable height.
- Mounted on castor wheels with lock arrangement.
Heating & Cooling System:
- U-shaped Nichrome heater with SS sheathing.
- Emerson compressors — R134a, R404 & R23 cascade.
- Three compressor system with bypass solenoid valve.
- Flange motor impeller & blower from 450 Ltr. onwards.
- Interior illumination for working area.
Safety Features:
- Temperature: Heater cut-off by thermostat, auto reset.
- Humidity: Boiler cut-off, alarm & buzzer.
- Low water level: Boiler cut-off with alarm.
- Human safety: Individual MCB and proper earthing.
Validation & Calibration:
- Calibration with traceability
- One cycle 24 hrs validation report (offline)
- Calibration & test certificates
- Manuals
- Wiring diagram
- Sensor position diagram
- Training included
Control & Monitoring System, Programmable Features, DQ, IQ, OQ, PQ & Documentation Support
Control & Monitoring Ssytem:
- PLC based with 7″ HMI.
- Offline data logger — 10,000 readings.
- Dot-matrix printer port.
- Relays, contactors, MCB and PID control.
- Ethernet communication.
- IP22 protection.
Programmable Feature:
- 5 programs
- Each program with 32 steps
- Repeat up to 999 times
- Programmable output (TS1) available
- Detailed cycle specifications to be provided prior to order
DQ,IQ,OQ,PQ Documentation:
- Complete DQ, IQ, OQ, PQ protocols
- Calibration certificates
- Test certificates
- Manuals
- Diagrams
- Training provided
Data Integrity & 21 CFR Part 11, Alarm Generation, Biometric Door Access — Optional
- Web-based 21 CFR Part 11 compliant software.
- Connects up to 20 chambers.
- Tamper-proof data.
- Auto backup.
- Authorised access only.
- Unlimited users.
- Multi-level login.
- Data logging and alarm reports.
- Password expiry and auto logout.
- Audit trail and alarm history.
- Real-time graph and component status.
Alarm Generation:
- Temperature deviation
- Sensor failure
- Component failure
- Mains failure
- Door open
- Thermostat high
Biometric Door Access (Optional):
- Thumb print door access system to open the door.
Applications & Industries
- Electronics & Semiconductor
- Aerospace
- Pharmaceuticals
- Automobile
- Packing
- Medical Storage
- R&D Activity
Models & Size Range
| Model No. | Capacity Cu. Ft. |
Litres | Chamber W×D×H (cm) |
Overall W×D×H (cm) |
Shelves | Unit | Packed | VAC/Hz | Watts |
|---|---|---|---|---|---|---|---|---|---|
| PIS-3(40) | 3 | 90 | 45×45×45 | 60×95×110 | 2 | 110 | 165 | 230,50 | 1500 |
| PIS-4(40) | 4 | 120 | 45×45×60 | 60×95×125 | 2 | 150 | 225 | 230,50 | 2000 |
| PIS-8(40) | 8 | 200 | 60×60×60 | 80×110×125 | 2 | 220 | 300 | 230,50 | 2500 |
| PIS-12(40) | 12 | 324 | 60×60×90 | 80×110×155 | 3 | 230 | 320 | 230,50 | 2500 |
| PIS-16(40) | 16 | 450 | 60×60×125 | 80×130×175 | 4 | 340 | 430 | 230,50 | 4000 |
| PIS-21(40) | 21 | 600 | 60×80×125 | 80×130×195 | 5 | 365 | 465 | 230,50 | 4000 |
| PIS-28(40) | 28 | 800 | 80×80×125 | 100×130×210 | 5 | 390 | 500 | 230,50 | 4500 |
| PIS-34(40) | 34 | 1000 | 80×80×155 | 100×130×220 | 5 | 430 | 525 | 230,50 | 4500 |
Why Choose Phoenix India Solutions (PIS)
- Quality products from trusted manufacturers.
- Application-oriented environmental chamber solutions.
- Technical support & after-sales service.
- Installation, validation & documentation support.
- Support for DQ, IQ, OQ & PQ requirements.
- Competitive pricing and quick delivery.
- Your long-term partner in scientific growth.
Interested in This Environmental Chamber?
Get in touch with Phoenix India Solutions for Environmental Chamber specifications, temperature and humidity requirements, technical discussions, validation support, pricing and quotation.
