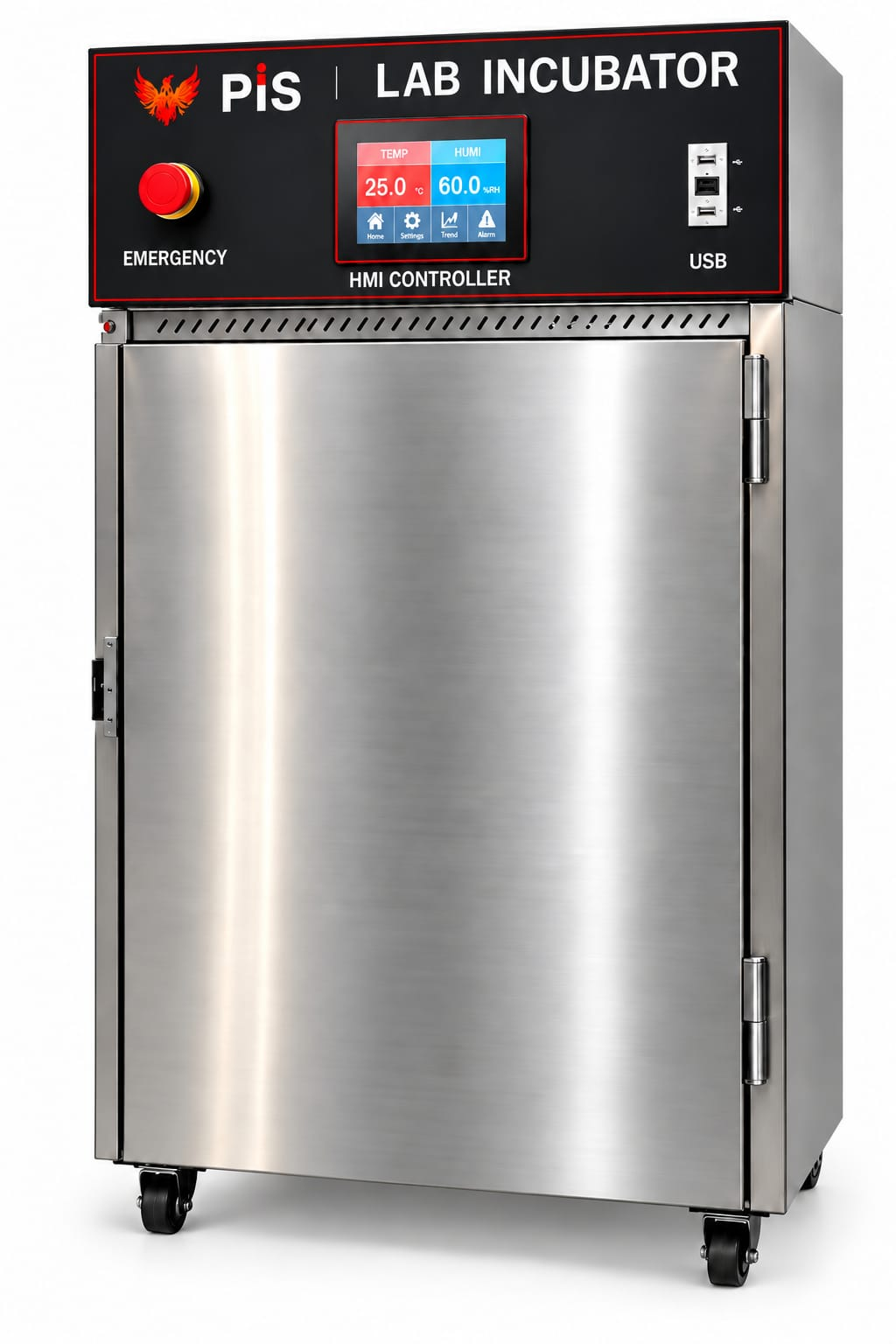

Laboratory Incubator – Precision Temperature Controlled Incubation
Laboratory Incubator for Precise Temperature-Controlled Applications
Phoenix India Solutions offers Laboratory Incubators designed for reliable and controlled-temperature incubation in microbiology, bacteriology, biotechnology, pharmaceutical research, quality control and laboratory research applications.
The Laboratory Incubator features a microprocessor-based auto-tune PID digital temperature controller, PT-100 sensor, forced-air circulation system and energy-efficient heating system for controlled incubation conditions.
Designed with double-walled construction, stainless-steel interior, glass wool insulation, adjustable SS rod shelves and safety features, the Laboratory Incubator is suitable for research laboratories, pharmaceutical laboratories, biotechnology and life-science facilities, educational institutions, quality-control laboratories and industrial R&D applications
Key Features & Benefits
- Precise Temperature Control – Microprocessor-based auto-tune PID digital temperature controller for controlled incubation.
- Temperature Control Range – 37°C to 60°C as specified in the technical specifications of the brochure.
- High Control Accuracy – Temperature control accuracy of ±0.5°C.
- Temperature Resolution – 0.1°C for precise temperature setting and monitoring.
- PT-100 Temperature Sensor – Provides reliable temperature sensing for incubation applications.
- Forced Air Circulation – Fan-assisted air circulation helps provide uniform temperature distribution inside the chamber.
- Energy-Efficient Heating System – Specially designed air heaters fitted at the bottom.
- Double-Walled Construction – Designed for stable and reliable laboratory operation.
- SS 304 Interior – Stainless-steel construction with a mirror-finished inner chamber.
- Glass Wool Insulation – Insulation between the chamber walls helps reduce heat loss.
- Inner Acrylic Door – Provides visibility of samples inside the chamber.
- Outer Metal Door with Lock – Magnetic gasket and locking arrangement for secure operation.
- Adjustable SS Rod Shelves – Allows flexible placement of samples inside the chamber.
- Safety Thermostat – Provides additional temperature safety protection.
- Forced-Air Fan System – Supports controlled air circulation throughout the chamber.
- Multiple Chamber Sizes – Available in five chamber configurations to suit different laboratory requirements.
- Research-Focused Design – Suitable for microbiology, bacteriology, biotechnology, pharmaceutical research, quality control and other laboratory applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Construction | Double Walled Construction |
| Material | Fully Stainless Steel 304 |
| Inner Finish / Exterior Finish | Inner Mirror Finished & Exterior Matt Finished |
| Insulation | Gap Between Two Walls Filled with Glass Wool Insulation |
| Door | Inner Acrylic Door & Exterior Metal Door with Magnetic Gasket & Lock |
| Heating System | Specially Designed Energy Efficient Air Heaters Fitted at Bottom |
| Shelves & Ventilation | Supplied with SS Rod Shelves & Aluminium Ventilator |
| Temperature Controller | Microprocessor-Based Auto Tune PID Digital Temperature Controller |
| Sensor | Simplex A Class Transition Joint PT 100 |
| Safety | Safety Thermostat |
| Air Circulation | Forced Air Circulation System with Fan |
| Temperature | 37°C to 60°C |
| Temperature Resolution | 0.1°C |
| Control Accuracy | ±0.5°C |
Available Chamber Sizes
| Chamber Size (L × W × H) cm | Exterior Dimensions (L × W × H) cm | Rating | No. of Shelves |
|---|---|---|---|
| 35 × 35 × 35 | 49 × 49 × 75 | 150 W | 2 |
| 45 × 45 × 45 | 54 × 54 × 80 | 150 W | 3 |
| 45 × 45 × 60 | 65 × 65 × 105 | 250 W | 4 |
| 60 × 60 × 60 | 80 × 80 × 105 | 400 W | 4 |
| 60 × 60 × 90 | 80 × 80 × 135 | 500 W | 5 |
Applications of Laboratory Incubator
The Laboratory Incubator is designed for controlled-temperature incubation and is suitable for a wide range of research, testing and laboratory applications. Its controlled temperature system, forced-air circulation and PID-based temperature control make it suitable for microbiological, bacteriological and research applications.
The Laboratory Incubator is suitable for pharmaceutical research, biotechnology and life-science laboratories, quality control and testing facilities, educational institutions, plant and environmental research, industrial R&D and general laboratory applications.
- Microbiology & Bacteriology: Suitable for microbiological and bacteriological laboratory applications requiring controlled-temperature incubation.
- Biotechnology & Life Sciences: Suitable for controlled incubation applications in biotechnology and life-science research laboratories.
- Pharmaceutical Research: Designed for pharmaceutical research laboratories requiring controlled-temperature incubation for laboratory studies and testing.
- Educational Institutions: Suitable for laboratory teaching, practical studies, demonstrations and research activities in educational laboratories.
- Plant & Environmental Research: Suitable for controlled incubation requirements associated with plant and environmental research applications.
- Quality Control & Testing: Suitable for quality-control and testing laboratories where controlled and repeatable temperature conditions are required.
- Industrial R&D: Suitable for research and development laboratories requiring controlled-temperature incubation for laboratory investigations.
- General Laboratory Use: Suitable for general laboratory incubation applications where controlled temperature conditions are required.
Optional Accessories & Advanced Features
The BOD Incubator can be configured with optional accessories and advanced features to meet specific laboratory monitoring, connectivity, documentation and validation requirements.
- Data Bank Recorder & Printer Interface: Optional interface for data recording and printer connectivity.
- PC Interface with RS-485 Converter: Optional computer interface for communication and data connectivity.
- 21 CFR Part 11 Software: Optional software solution for compliance-oriented electronic data management.
- PLC / HMI Touch Screen: Optional PLC and HMI touch-screen control configuration.
- GSM Mobile Alert: Optional mobile alert facility for remote notification.
- Uninterrupted Power Supply (UPS): Optional UPS arrangement for power continuity.
- Validation Services: Validation services can be provided as an optional service.
- Customizable Solutions: Configuration options can be customized according to specific customer requirements.
Safety & User-Friendly Operation
The Laboratory Incubator is designed with features that support safe, convenient and reliable laboratory operation. The combination of a safety thermostat, controlled temperature system, secure door arrangement and forced-air circulation helps provide a practical environment for routine incubation and laboratory research applications.
The incubator incorporates a double-walled construction with insulation, an inner acrylic door, an exterior metal door with magnetic gasket and lock, adjustable SS rod shelves and an aluminium ventilator. These features are designed to support convenient sample handling and controlled incubation conditions.
- Safety Thermostat: Provides an additional temperature safety control for laboratory operation.
- Secure Door Arrangement: Inner acrylic door and exterior metal door with magnetic gasket and lock.
- Forced Air Circulation: Fan-assisted air circulation supports temperature distribution throughout the chamber.
- Insulated Construction: The double-walled construction incorporates glass wool insulation between the walls.
- Adjustable SS Rod Shelves: Provides flexibility for arranging samples inside the incubation chamber.
- Aluminium Ventilator: Provided as part of the chamber's ventilation arrangement.
- Temperature Monitoring: Microprocessor-based auto-tune PID digital temperature controller with 0.1°C temperature resolution.
Why Choose Phoenix India Solutions for Laboratory Incubator?
Phoenix India Solutions provides laboratory equipment solutions for research, pharmaceutical, biotechnology, quality control, educational and industrial laboratory requirements. Our Laboratory Incubator offering combines controlled-temperature operation, precision PID control, forced-air circulation and practical laboratory construction to support dependable incubation applications.
With multiple chamber size options and application-focused configurations, Phoenix India Solutions can support laboratories in selecting a Laboratory Incubator according to their required chamber dimensions, application and operating requirements.
- Multiple Chamber Size Options: Five chamber configurations are available to suit different laboratory requirements.
- Precise Temperature Control: Microprocessor-based auto-tune PID digital temperature controller with PT-100 temperature sensing.
- Controlled Air Circulation: Forced-air circulation with fan supports temperature distribution within the chamber.
- Laboratory-Oriented Construction: Designed with double-walled construction, stainless-steel interior, insulation and adjustable SS rod shelves.
- Safety Features: Safety thermostat and secure door arrangement support safe laboratory operation.
- Wide Application Range: Suitable for microbiology, bacteriology, biotechnology, pharmaceutical research, quality control, educational and industrial R&D applications.
- Application-Focused Support: Phoenix India Solutions can assist in identifying a suitable configuration based on the laboratory's application and requirements.
- Pan India Supply & Support: Solutions are available for laboratory requirements across India.
- Customized Solutions: Customized solutions are available as indicated in the product brochure.
- Dedicated Customer Support: Support is provided for laboratory equipment requirements and product selection.
Interested in Laboratory Incubator?
Looking for a reliable Laboratory Incubator for microbiology, bacteriology, biotechnology, pharmaceutical research, quality control, educational or industrial R&D applications?
Phoenix India Solutions can help you identify a suitable Laboratory Incubator configuration based on your application, required chamber size, sample requirements and temperature requirements.
The Laboratory Incubator is available in multiple chamber configurations and features a microprocessor-based auto-tune PID digital temperature controller, PT-100 sensor, forced-air circulation, adjustable SS rod shelves and safety thermostat for controlled laboratory incubation.
Share your required chamber size, application and technical requirements with Phoenix India Solutions to discuss a suitable Laboratory Incubator configuration and quotation.
