Inclined Binocular Microscope

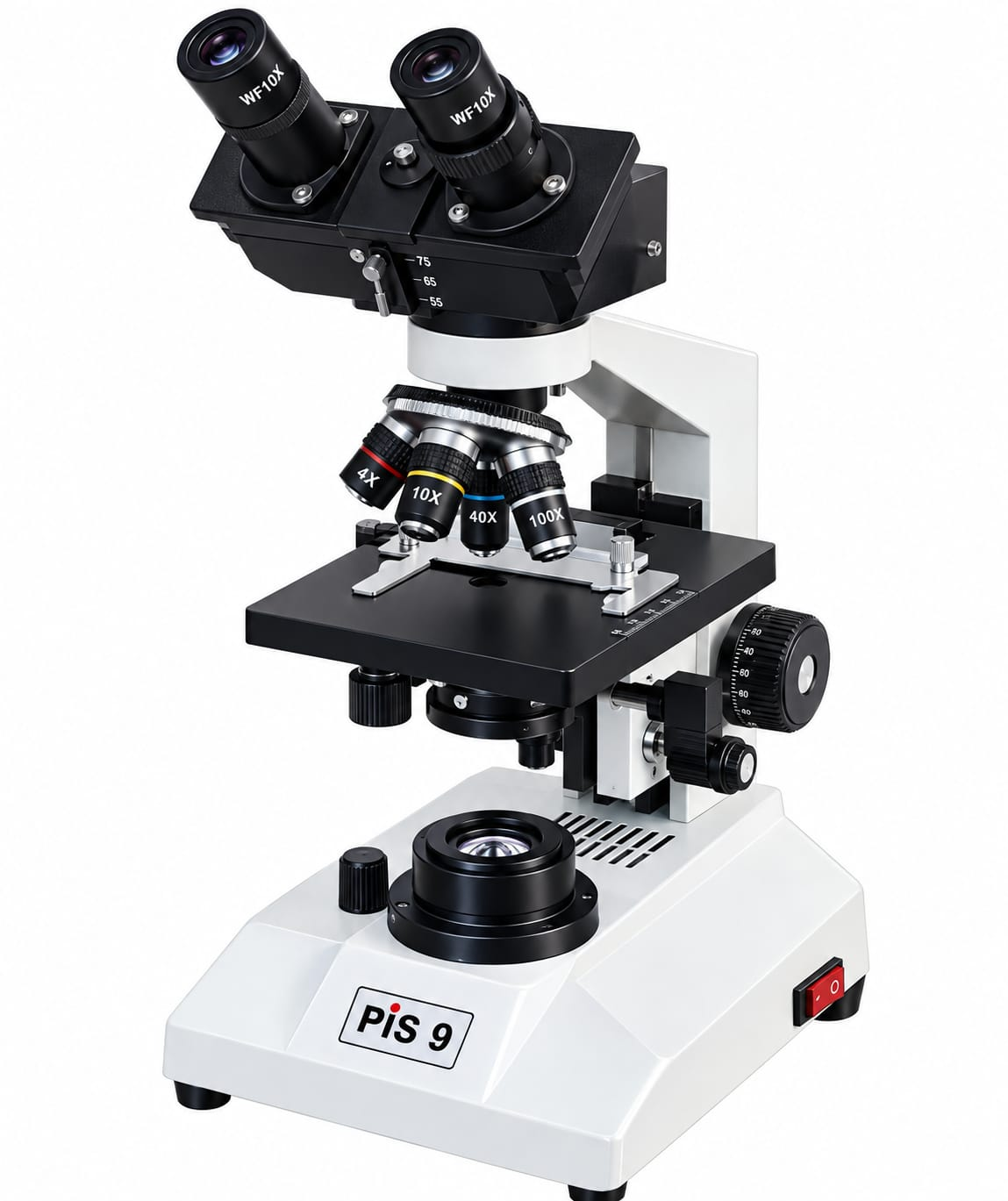

Inclined Binocular Microscope – PIS 9
The PIS 9 Inclined Binocular Microscope is a practical laboratory microscope designed for clear and reliable microscopic observation in education, quality control and research applications. It features a binocular/trinocular viewing head with a 45° inclination and 360° rotation for convenient observation.
The microscope is equipped with a wide-field 10X eyepiece and achromatic objectives of 4X, 10X, 40X and 100X. A quadruple nosepiece and graduated coaxial double-plate mechanical stage support convenient specimen positioning and objective selection.
Separate coarse and fine focusing adjustments provide controlled focusing during observation. The illumination system supports 6V 20W LED or halogen lamp operation, with adjustable brightness and battery-backup capability as specified in the supplied product information.
Phoenix India Solutions supplies the PIS 9 Inclined Binocular Microscope for laboratories, educational institutions, quality-control environments and research applications requiring dependable microscopic observation.
Key Features & Benefits
- Binocular / Trinocular Viewing Head: The 45° inclined viewing head can be rotated through 360° for convenient viewing and comfortable observation.
- Wide-Field 10X Eyepiece: Provides a broad viewing field for convenient microscopic observation.
- Achromatic Objectives: Equipped with 4X, 10X, 40X and 100X achromatic objectives for different levels of magnification.
- Quadruple Nosepiece: Allows convenient selection between the available objective lenses.
- Graduated Coaxial Double-Plate Mechanical Stage: Provides controlled specimen positioning during microscopic examination.
- Separate Coarse & Fine Focusing: Independent coarse and fine adjustment controls support convenient and precise focusing.
- Adjustable Illumination: The illumination system provides brightness adjustment for suitable viewing conditions.
- LED / Halogen Illumination: The microscope supports 6V 20W LED or halogen lamp illumination as specified in the supplied product information.
- Battery Backup: Battery-backup capability is specified as part of the illumination configuration.
- Camera & Software Options: Digital USB cameras, HD cameras and software are available as optional accessories at extra cost.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PIS 9 |
| Viewing Head | Binocular / Trinocular, 45° Rotatable 360° |
| Eyepiece | Wide Field Eyepiece 10X |
| Objectives | Achromatic Objectives 4X, 10X, 40X & 100X |
| Nosepiece | Quadruple Nosepiece |
| Mechanical Stage | Graduated Coaxial Double Plate Mechanical Stage |
| Focusing Range | Separate Coarse and Fine Adjustment |
| Illumination | 6V 20W LED or Halogen Lamp or Battery Backup |
| Brightness Control | Brightness Adjustable |
| Optional Accessories | Digital USB Cameras, HD Cameras & Software etc. |
Note: The supplied product information does not specify dimensions, weight, numerical field of view, working distance, optical tube specification or other additional parameters. These specifications have therefore not been added.
Applications
The PIS 9 Inclined Binocular Microscope is suitable for laboratory observation, education, quality-control activities and research applications where clear and convenient microscopic examination is required.
- Educational Institutions: Suitable for teaching and practical laboratory work involving microscopic observation.
- Research Laboratories: Useful for research applications requiring routine microscopic examination and observation.
- Quality Control: Suitable for laboratory quality-control activities involving microscopic inspection.
- General Laboratory Applications: Designed for routine microscopic observation in laboratory environments.
Why Choose Phoenix India Solutions for Inclined Binocular Microscope?
Phoenix India Solutions supplies laboratory equipment for educational, research and quality-control applications. The PIS 9 Inclined Binocular Microscope offers a practical optical configuration for routine microscopic observation and laboratory use.
- Application-Focused Product Selection: Suitable for education, research, quality-control and general laboratory observation requirements.
- Versatile Optical Configuration: Includes a 10X wide-field eyepiece with 4X, 10X, 40X and 100X achromatic objectives.
- Convenient Viewing: The 45° viewing head with 360° rotation supports comfortable and flexible observation.
- Controlled Specimen Positioning: The graduated coaxial double-plate mechanical stage provides convenient specimen movement during observation.
- Coarse & Fine Focusing: Separate focusing adjustments allow convenient control during microscopic examination.
- Flexible Illumination: The specified LED or halogen illumination configuration includes adjustable brightness.
- Laboratory Equipment Support: Phoenix India Solutions assists customers with product information, application requirements and quotation support.
Interested in Inclined Binocular Microscope?
Looking for an Inclined Binocular Microscope for education, research, quality control or general laboratory applications?
The PIS 9 Inclined Binocular Microscope features a 45° rotatable 360° viewing head, wide-field 10X eyepiece, 4X, 10X, 40X and 100X achromatic objectives, quadruple nosepiece and graduated coaxial double-plate mechanical stage.
Share your laboratory application and requirements with Phoenix India Solutions to receive product details and a quotation.
Contact Phoenix India Solutions for technical details, product information and pricing.
